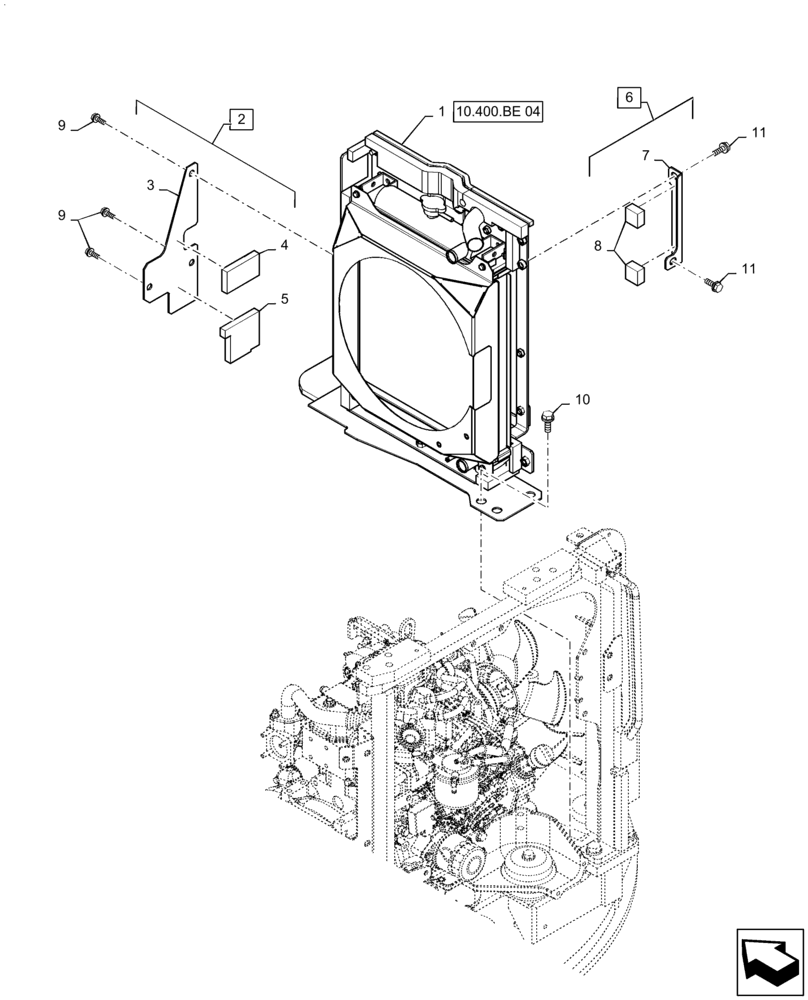

Запчасти Case CX31B (10.400.BE[03]) - RADIATOR INSTALL - AIR CONDITIONER (10) - ENGINE

1

PX05P00027F1

RADIATOR

Assy

1шт.

2

PX05P01042F1

BRACKET

Assy, Incl 3 - 5

1шт.

3

PX05P01132P1

PLATE

1шт.

4

PX05P01133P1

INSULATION

1шт.

5

PX05P01131P1

INSULATION

1шт.

6

PX05P01199F1

BRACKET

Assy, Incl 7, 8

1шт.

7

PX05P01200P1

BRACKET

1шт.

8

PX05P01201P1

INSULATION

2шт.

9

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

5шт.

10

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

1шт.

11

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.
