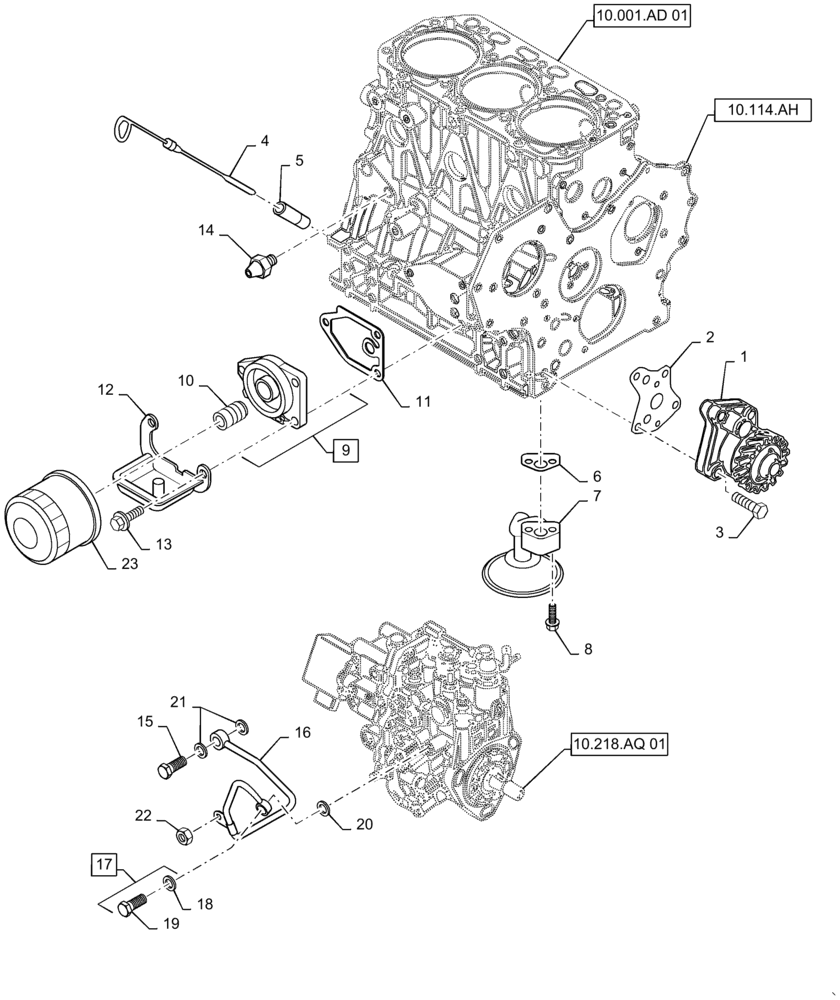

Запчасти Case CX31B (10.304.AC) - LUB. OIL SYSTEM (10) - ENGINE

1

VV12900132002

FUEL PUMP

Assy, Oil

1шт.

2

VV12915032020

GASKET

Pump

1шт.

3

VV26450060252

BOLT,M6 x 25mm

4шт.

4

VV12900434802

DIPSTICK

Oil

1шт.

5

VV12152034810

GUIDE

Dipstick

1шт.

6

VV12915035042

GASKET

1шт.

7

VV12910035301

PIPE ASSY.

Oil Inlet

1шт.

8

VV26106080352

BOLT,M8 x 35mm

Plated

2шт.

9

VV11980235100

BRACKET

Assy, Filter, Incl 10

1шт.

10

VV12910035140

STUD

1шт.

11

VV12915035111

GASKET

1шт.

12

VV12924035800

PLATE

Oil Pan

1шт.

13

VV26106080202

BOLT,M8 x 20mm

Plated

3шт.

14

VV11976139450

PRESSURE SWITCH

0.5Kg (Used for Engine Oil Pressure)

1шт.

15

VV12416039140

BOLT

Pipe Joint M10

1шт.

16

VV11980239450

PIPE ASSY.

Oil

1шт.

17

VV12900559830

BOLT

Assy, Joint M8, Incl 18, 19

1шт.

18

VV22190080002

SEAL

Washer, 8

1шт.

19

VV23857030000

BOLT

Joint 3

1шт.

20

VV22190080002

SEAL

Washer, 8

1шт.

21

VV22190100002

SEAL

Washer, 10

2шт.

22

VV26366060002

NUT,M6

1шт.

23

VV12915035153

ENGINE OIL FILTER

1шт.
