(10.254.AI) - MUFFLER, ASSY - WITH E EXHAUST

Запчасти Case CX31B (10.254.AI) - MUFFLER, ASSY - WITH E EXHAUST (10) - ENGINE

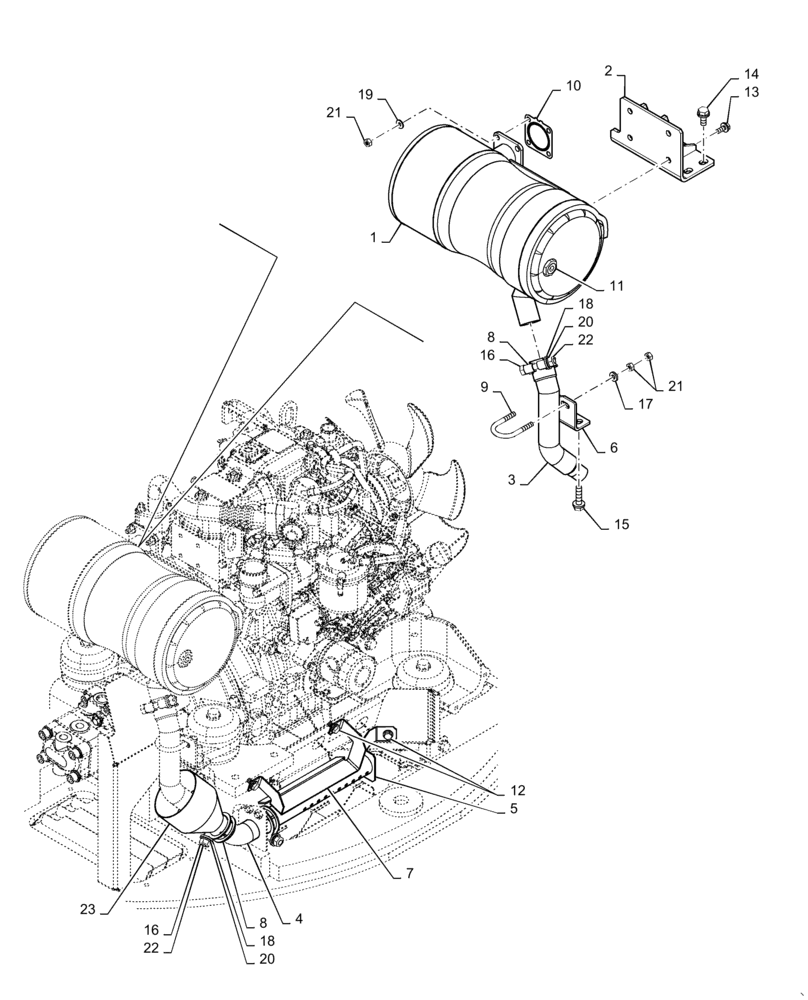

Схема запчастей Case CX31B - (10.254.AI) - MUFFLER, ASSY - WITH E EXHAUST (10) - ENGINE
16
17
1
21
23
18
7
16
6
10
15
13
19
12
14
8
9
20
20
5
18
22
21
11
2
3
8
22
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX12P00016P1

MUFFLER

1шт.

2

PX12P01044P1

BRACKET

1шт.

3

PX12P01144P2

EXHAUST SYSTEM PIPE

Tube

1шт.

4

PX12P01151P2

EXHAUST SYSTEM PIPE

Tube

1шт.

5

PX12P01138P1

EXHAUST SYSTEM PIPE

Tube

1шт.

6

PX12P01058P1

PLATE

1шт.

7

PX12P01086P1

COVER

1шт.

8

PX12P01137P1

CLAMP

3шт.

9

2420T2948D2

U-BOLT

1шт.

10

PW12P01043P1

GASKET

1шт.

11

ZE82T08000

PLUG

1шт.

12

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

5шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

14

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

15

ZM73C10033

Sems

2шт.

16

ZS18C10060

SCREW,Hex, M10 x 60mm

Cap

3шт.

17

ZW16H08000

WASHER

2шт.

18

ZW16H10000

WASHER

3шт.

19

ZW16P08000

WASHER

4шт.

20

ZW26X10000

LOCK WASHER

3шт.

21

ZN18C08007

NUT

8шт.

22

ZN18C10008

NUT

3шт.

23

PX12P01148P2

EXHAUST SYSTEM PIPE

Tube

1шт.
