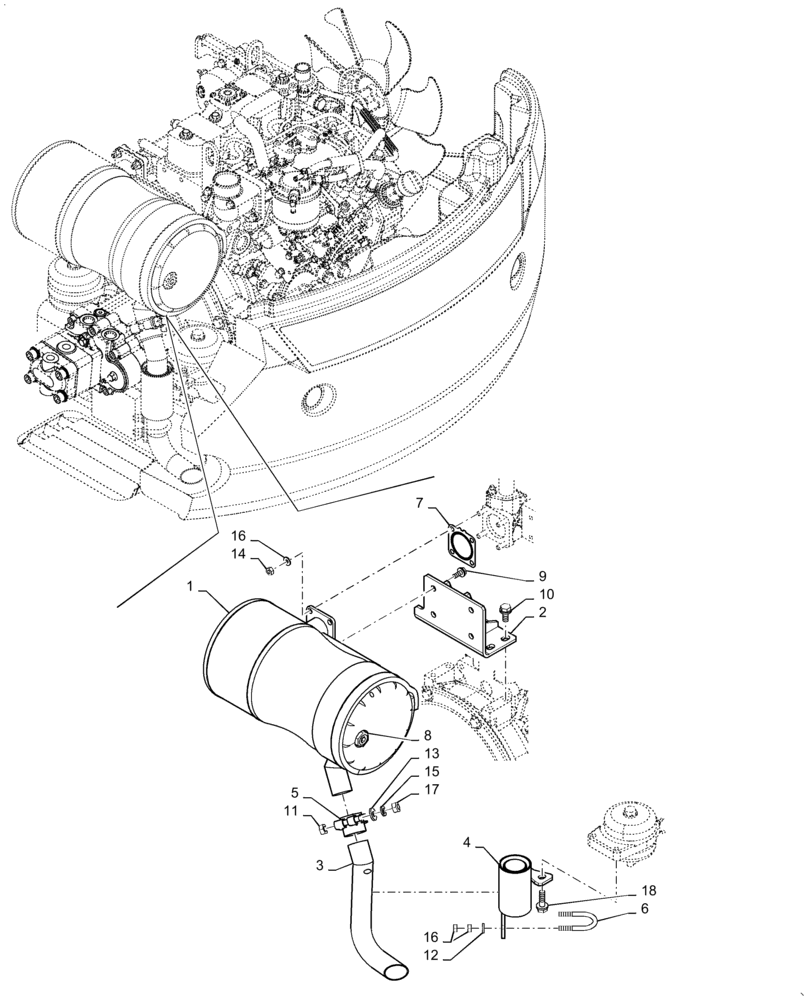

Запчасти Case CX31B (10.254.AI[01]) - MUFFLER, ASSY - WITH STRAIGHT TAIL PIPE - PW16-80279 (10) - ENGINE

1

PX12P00016P1

MUFFLER

1шт.

1

PX12P00016P2

MUFFLER

1шт.

2

PX12P01044P1

BRACKET

1шт.

3

PD12P01011P1

EXHAUST SYSTEM PIPE

Tube

1шт.

4

PW12P01083P1

PLATE

1шт.

5

PX12P01137P1

CLAMP

1шт.

6

2420T2948D2

U-BOLT

1шт.

7

PW12P01043P1

GASKET

1шт.

8

ZE82T08000

PLUG

1шт.

9

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

10

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

11

ZS18C10060

SCREW,Hex, M10 x 60mm

Cap

1шт.

12

ZW16H08000

WASHER

2шт.

13

ZW16H10000

WASHER

1шт.

14

ZW16P08000

WASHER

4шт.

15

ZW26X10000

LOCK WASHER

1шт.

16

ZN18C08007

NUT

8шт.

17

ZN18C10008

NUT

1шт.

18

ZM73C10035

BOLT,M10x35mm - Course Thread

Sems

2шт.
