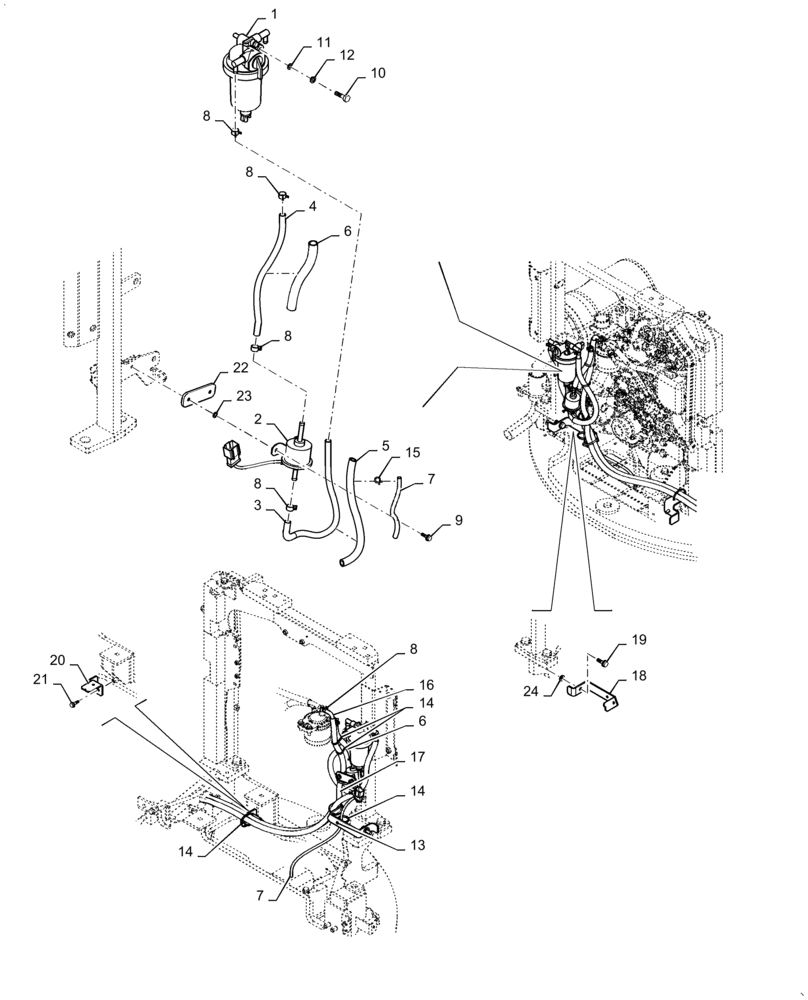

Запчасти Case CX31B (10.216.BA[05]) - FUEL LINE - WITH STRAIGHT TAIL PIPE (10) - ENGINE

1

PH02P01056P1

SEPARATOR

Assy,Water

1шт.

2

PW22P00001P1

FUEL PUMP

1шт.

3

PY21P01023D2

FUEL HOSE

1шт.

4

PH21P01003D6

HOSE ASSY.

1шт.

5

HX81X13034DX

TUBE

1шт.

6

HX81X13016DX

TUBE

1шт.

7

HX11Y04055DX

FUEL HOSE

1шт.

8

PH05P01088D5

CLIP

6шт.

9

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

2шт.

10

ZS18C08075

SCREW,Hex, M8 x 75mm

Cap

1шт.

11

ZW16P08000

WASHER

1шт.

12

ZW26X08000

LOCK WASHER

1шт.

13

YN13E01375P1

CLIP,M8 x 8.20mm Shank

1шт.

14

PY01P01043D3

CABLE TIE,188mm L

Clip

6шт.

15

PA21P01003D2

CLIP

1шт.

16

PY21P01024D8

FUEL HOSE

1шт.

17

HX81X13100DX

TUBE

1шт.

18

PX21P01017P1

PLATE

1шт.

19

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

1шт.

20

PX21P01019P2

PLATE

1шт.

21

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

1шт.

22

PX21P01020P2

RUBBER STRIP

1шт.

23

ZW16H06000

WASHER

2шт.

24

YN21C01396P1

WASHER

1шт.
