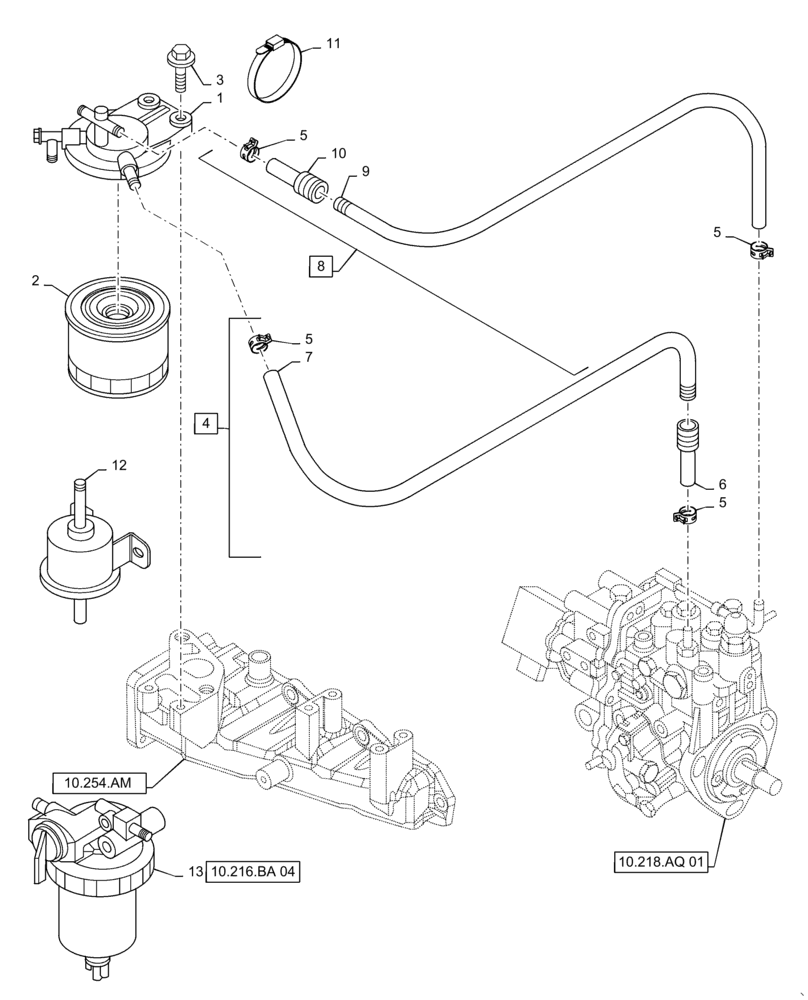

Запчасти Case CX31B (10.216.BA[03]) - FUEL LINE (10) - ENGINE

1

VV12900455612

BRACKET

Filter

1шт.

2

VV11980255801

FUEL FILTER

1шт.

3

VV26106080302

BOLT,M8 x 30mm

Plated

2шт.

4

VV12995059231

PIPE

Fuel, Incl 5 - 7

1шт.

5

VV12476659050

CLAMP

Clip, Hose 11.5

4шт.

6

VV17105159050

PIPE

Fuel L=240

1шт.

7

VV12995059241

TUBE

Corrugated

1шт.

8

VV12995059311

INJECTION PIPE

Fuel, Incl 5, 9, 10

1шт.

9

VV12996159110

TUBE

Corrugated

1шт.

10

VV10502559580

PIPE

Fuel

1шт.

11

VV12175059890

CLAMP

Band, 140

1шт.

12

VV12961252100

FUEL PUMP,12V, 1.5A

Assy, Feed

3шт.

13

VV11980255700

SEPARATOR

Assy

1шт.
