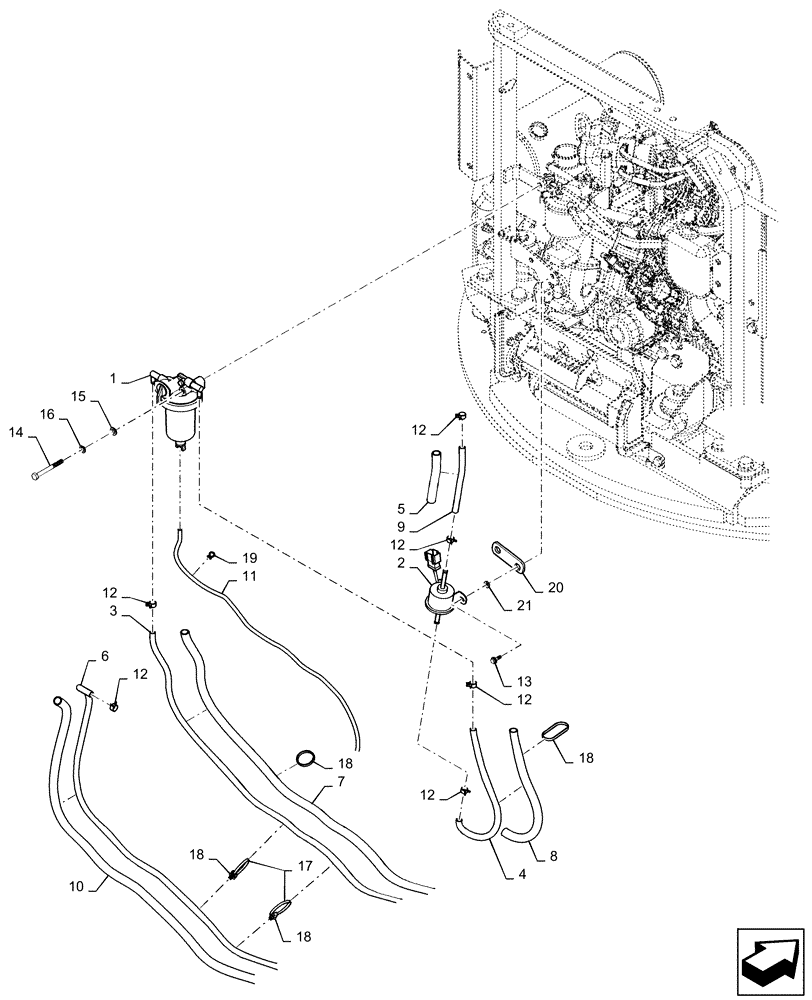

Запчасти Case CX31B (10.216.BA[02]) - FUEL LINE - WITH E EXHAUST (10) - ENGINE

1

PH02P01056P1

SEPARATOR

Assy, Water

1шт.

2

PW22P00001P1

FUEL PUMP

1шт.

3

PR21P01018D9

FUEL HOSE

Used With E Exhaust

1шт.

3

PH21P01003DH

FUEL HOSE

Used with Straight Tail Pipe

1шт.

4

PY21P01023D2

FUEL HOSE

1шт.

5

PA21P01004DB

HOSE ASSY.

1шт.

6

PY21P01024D8

FUEL HOSE

Used With E Exhaust

1шт.

6

PY21P01024D9

FUEL HOSE

Used with Straight Tail Pipe

1шт.

7

HX81X13210DX

TUBE

1шт.

8

HX81X13034DX

TUBE

1шт.

9

HX81X13016DX

TUBE

1шт.

10

HX81X13100DX

TUBE

1шт.

11

HX11Y04068DX

FUEL HOSE

Used With E Exhaust

1шт.

11

HX11Y04055DX

FUEL HOSE

Used with Straight Tail Pipe

1шт.

12

PH05P01088D5

CLIP

6шт.

13

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

2шт.

14

ZS18C08075

SCREW,Hex, M8 x 75mm

Cap

1шт.

15

ZW16P08000

WASHER

1шт.

16

ZW26X08000

LOCK WASHER

1шт.

17

YN13E01375P1

CLIP,M8 x 8.20mm Shank

2шт.

18

PY01P01043D3

CABLE TIE,188mm L

Clip

4шт.

19

PA21P01003D2

CLIP

1шт.

20

PX21P01020P1

RUBBER STRIP

1шт.

21

ZW16H06000

WASHER

2шт.
