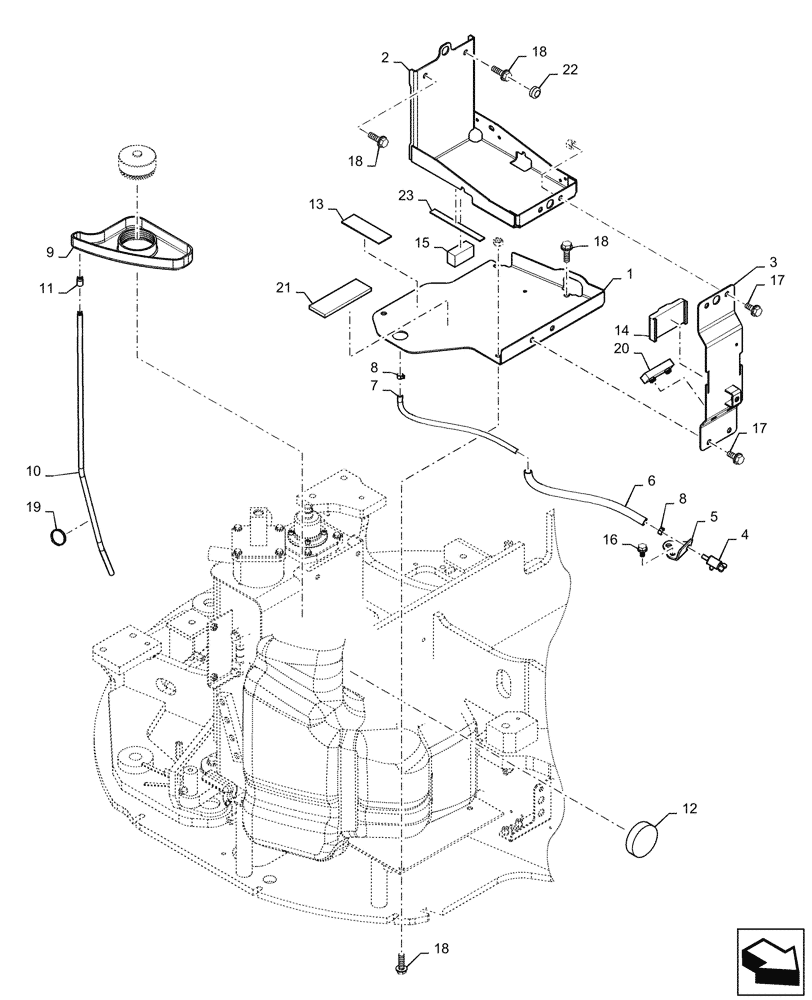

Запчасти Case CX31B (10.216.AI[01]) - FUEL TANK INSTALL (10) - ENGINE

1

PX20P01018P1

PLATE

Assy

1шт.

2

PX20P01023P2

BRACKET

Assy, Serial Range: PW16-80001-PW16-80065

1шт.

2

PX20P01023P3

BRACKET

, Start Serial: PW16-80066

1шт.

3

PX20P01031P1

PLATE

Assy

1шт.

4

YN05P00010S007

COCK, DRAIN

1шт.

5

PM05P01046P1

BOSS

1шт.

6

PA21P01005DL

HOSE

1шт.

7

PU13E01002D9

TUBE

1шт.

8

PH05P01088D6

CLIP

2шт.

9

PS20P01046P1

RUBBER STRIP

1шт.

10

PS20P01047P1

HOSE

1шт.

11

PS20P01049P1

ELEC CONNECTOR

1шт.

12

PW20P01115P1

RUBBER

1шт.

13

PS20P01017P1

RUBBER STRIP

1шт.

14

PX20P01026P1

RUBBER STRIP

1шт.

15

PX20P01027P1

RUBBER STRIP

1шт.

16

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

17

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

4шт.

18

ZM73C12040

BOLT,M12x40mm - Course Thread

Sems

6шт.

19

PY01P01043D3

CABLE TIE,188mm L

Clip

1шт.

20

PX20P01022P1

RUBBER STRIP

1шт.

21

PX20P01025P1

RUBBER STRIP

1шт.

22

PW03M01557P1

CAP

1шт.

23

PX20P01033P1

RUBBER STRIP

1шт.
