Запчасти Case CX31B (10.103.AK) - FLYWHEEL, HOUSING, OIL SUMP (10) - ENGINE

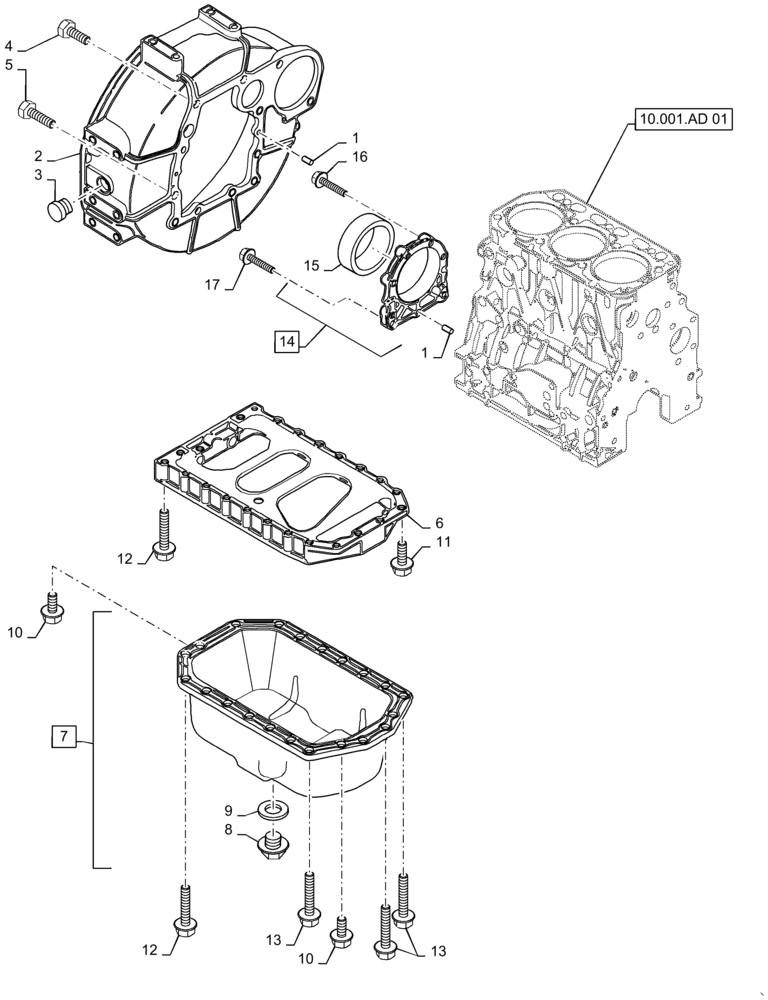

Схема запчастей Case CX31B - (10.103.AK) - FLYWHEEL, HOUSING, OIL SUMP (10) - ENGINE
15
5
10
6
1
16
10.001.ad 01
8
11
10
7
4
12
17
13
9
14
1
3
12
2
13

Артикул

Название

Примечание

Количество

1

VV12910001580

PIN,M8 x 16mm

4шт.

2

VV12961201600

HOUSING

Flywheel

1шт.

3

VV11962001750

CAP

1шт.

4

VV26206100252

BOLT,M10 x 25mm

Plated

6шт.

5

VV26206100302

BOLT,M10 x 30mm

Plated

4шт.

6

VV12910001730

SPACER

Oil Sump

1шт.

7

VV12913601780

SUMP

Assy, Oil, Incl 8, 9

1шт.

8

VV11964001640

DRAIN PLUG,M22

1шт.

9

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

Washer, 22

1шт.

10

VV26106080162

BOLT,M8 x 16mm

Plated

4шт.

11

VV26106080252

BOLT,M8 x 25mm

Plated

2шт.

12

VV26106080452

BOLT,M8 x 45mm

Plated

16шт.

13

VV26106080502

BOLT,M8 x 50mm

Plated

4шт.

14

VV12910001640

BOX

Case Assy, Oil Seal, Incl 15

1шт.

15

VV12979501780

OIL SEAL

1шт.

16

VV12948601670

BOLT,M8 x 30mm

6шт.

17

VV26106080352

BOLT,M8 x 35mm

Plated

3шт.

Выбрано товаров: 17
