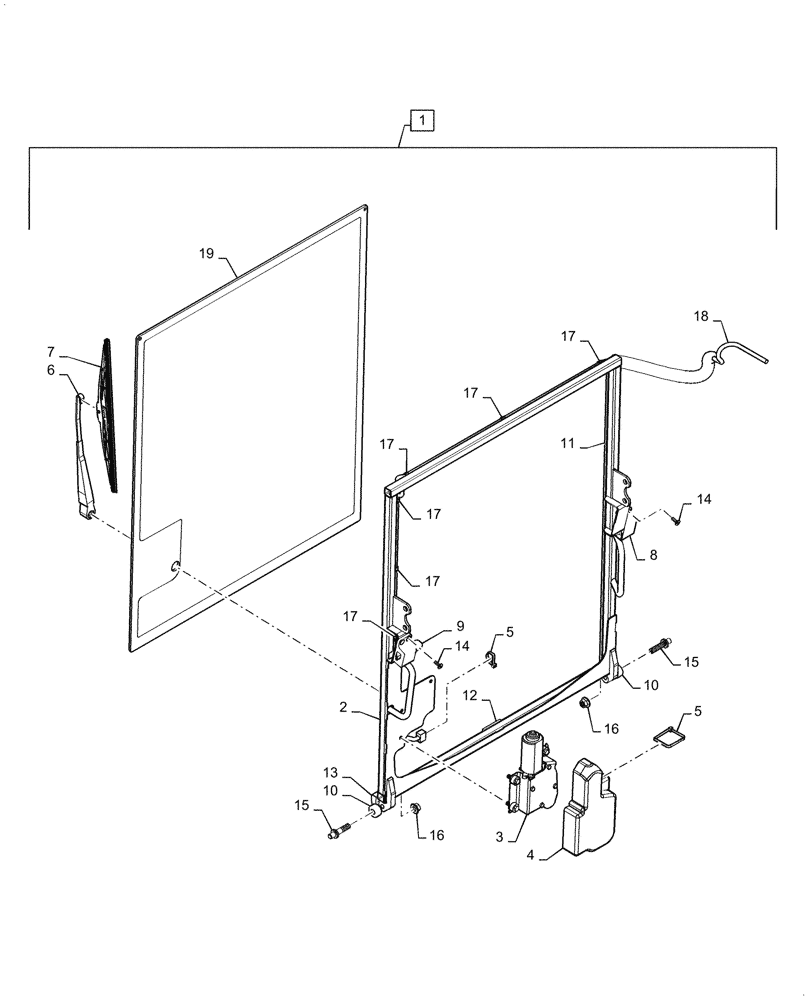

Запчасти Case CX31B (90.156.AG) - WINDOW, ASSY, FR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX50C00001F1

FRAME

Window Assy, Incl 2 - 19

1шт.

2

PX50C01003P1

FRAME

Assy

1шт.

3

PY76S00001P1

WIPER MOTOR

, Serial Range: PW16-80001-PW16-80129

1шт.

3

PM76S00001F1

WIPER MOTOR

, Start Serial: PW16-80130

1шт.

4

YT02C01125P1

COVER

1шт.

5

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

Clip

2шт.

6

PM53C00001P1

WIPER ARM

1шт.

7

YR53C01001P1

WIPER BLADE

1шт.

8

PY50C01040P1

LOCK

1шт.

9

PY50C01041P1

LOCK

1шт.

10

PY50C01013P1

ROLLER

2шт.

11

PX02C01196D3

SEAL

1шт.

12

PX02C01196D4

SEAL

1шт.

13

PX50C01021D1

SEAL

1шт.

14

ZS68C06016

SCREW

4шт.

15

PY50C01015P1

BOLT

2шт.

16

PS02C01099D4

NUT

, Serial Range: PW16-80001-PW16-80213

2шт.

16

ZN17C10008

NUT

, Start Serial: PW16-80214

2шт.

17

PS50C01015P1

HOLDER

6шт.

18

PX02C01259P1

WIRE HARNESS

Wiper Motor

1шт.

19

PX50C01004P1

GLASS

1шт.
