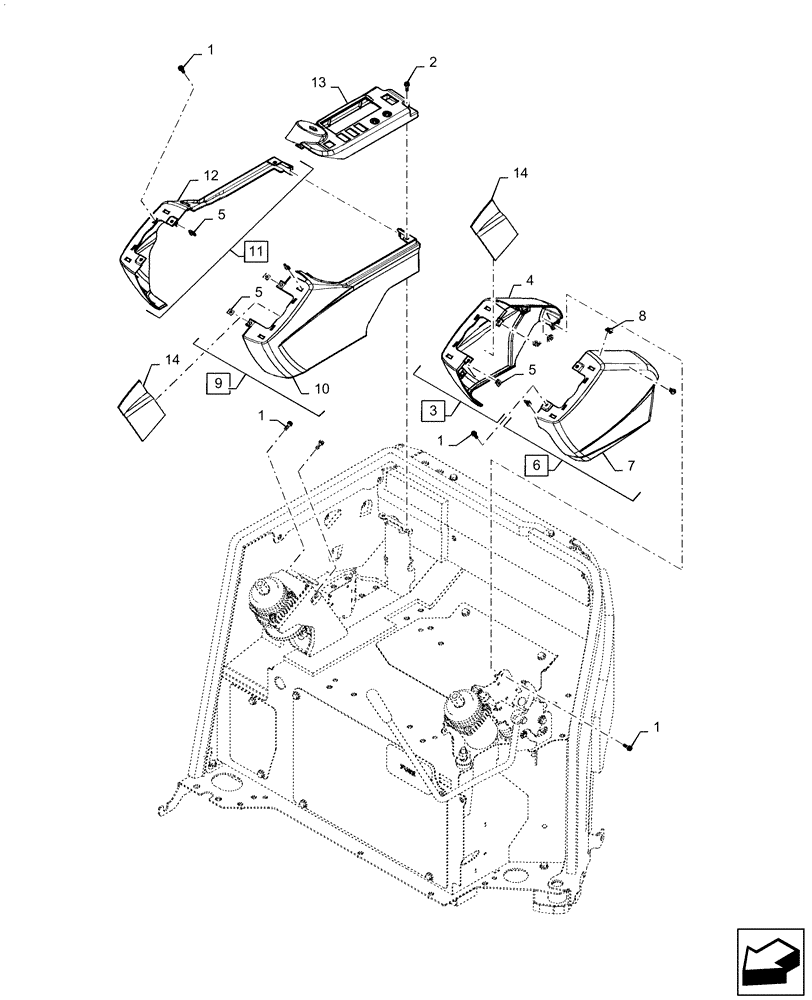

Запчасти Case CX31B (90.151.AN[12]) - COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ZM46C05016

BOLT,Phillip, M5 x 0.8 x 15mm

Sems

8шт.

2

PW03M01717D1

BOLT,Torx, Truss HD, M5 x 0.8 x 16mm

Sems

2шт.

3

PS03M01249F1

COVER ASSY

Incl 4, 5

1шт.

4

PS03M01224P2

COVER

1шт.

5

PS03M01231P1

NUT

8шт.

6

PS03M01246F1

COVER ASSY

Incl 7, 8

1шт.

7

PS03M01219P2

COVER

1шт.

8

PS03M01232P1

CLIP

3шт.

9

PS03M01250F1

COVER ASSY

Incl 5, 10

1шт.

10

PS03M01225P2

COVER

1шт.

11

PS03M01248F1

COVER ASSY

Incl 5, 12

1шт.

12

PS03M01221P2

COVER

1шт.

13

PS03M01217P1

COVER

1шт.

14

PM03M01324P1

FOAM INSULATION

2шт.
