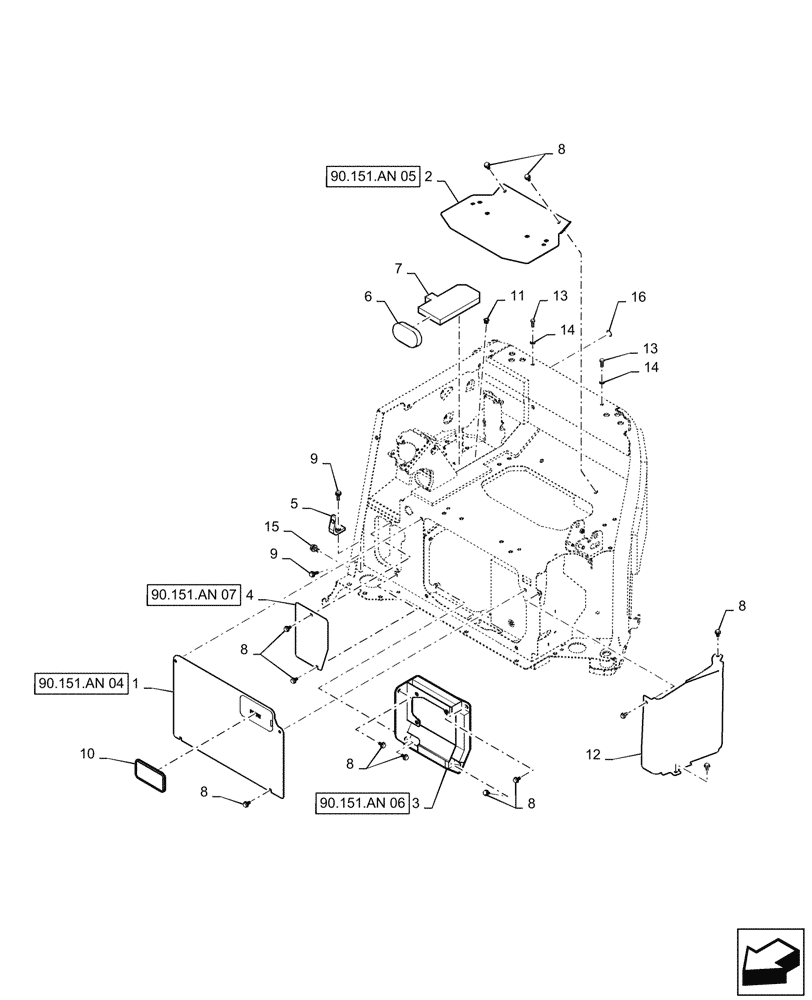

Запчасти Case CX31B (90.151.AN[08]) - CONTROLS, OPERATORS, CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX03M01252F1

COVER ASSY

1шт.

2

PX03M01251F1

COVER ASSY

1шт.

3

PX03M01250F1

COVER ASSY

1шт.

4

PX03M01256F1

COVER ASSY

1шт.

5

PX03M01178P1

BRACKET

1шт.

6

PX10M01222P1

INSULATION

1шт.

7

PX10M01192P1

INSULATION

, Serial Range: PW16-80001-PW16-80152

1шт.

7

PX10M01306P1

INSULATION

, Start Serial: PW16-80153

1шт.

8

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

16шт.

9

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

10

PX03M01227P1

GROMMET

1шт.

11

PW17M01021P1

CAP

1шт.

12

PX03M01257P2

COVER

, Serial Range: PW16-80001-PW16-80200

1шт.

12

PX03M01314P1

COVER ASSY

, Start Serial: PW16-80201

1шт.

13

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

2шт.

14

ZW16P08000

WASHER

2шт.

15

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

16

YT02C01567D1

PLATE

, Serial Range: PW16-80001-PW16-80038

1шт.
