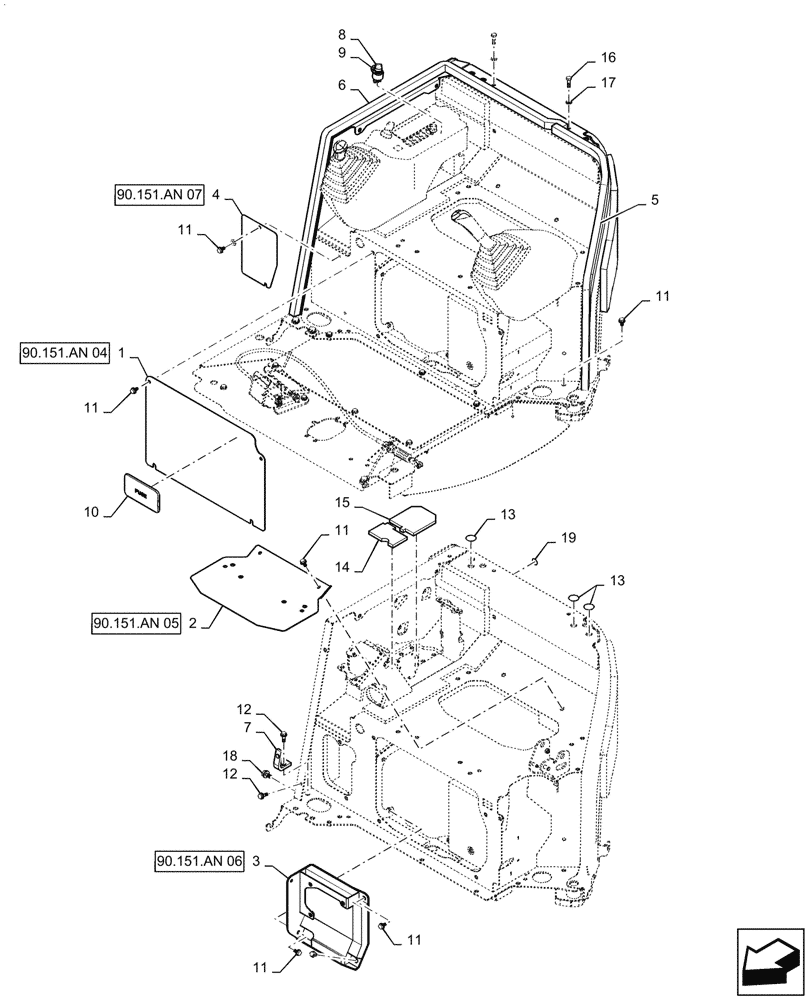

Запчасти Case CX31B (90.151.AN[01]) - CONTROLS, OPERATORS - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX03M01252F1

COVER ASSY

1шт.

2

PX03M01251F1

COVER ASSY

1шт.

3

PX03M01250F1

COVER ASSY

1шт.

4

PX03M01256F1

COVER ASSY

1шт.

5

PX03M01177P1

RUBBER STRIP

1шт.

6

PX03M01176P1

RUBBER STRIP

1шт.

7

PX03M01178P1

BRACKET

1шт.

8

PY50S00004P2

SWITCH

(Used for Windshield Wiper Washer)

1шт.

9

PW17M01018P1

LABEL

1шт.

10

PX03M01227P1

GROMMET

1шт.

11

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

13шт.

12

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

13

YT02C01567D2

PLATE

3шт.

14

PX10M01287P1

INSULATION

, Serial Range: PW16-80001-PW16-80152

1шт.

14

PX10M01305P1

INSULATION

, Start Serial: PW16-80153

1шт.

15

PX10M01206P1

INSULATION

, Serial Range: PW16-80001-PW16-80152

1шт.

15

PX10M01307P1

INSULATION

, Start Serial: PW16-80153

1шт.

16

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

2шт.

17

ZW16P08000

WASHER

2шт.

18

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

19

YT02C01567D1

PLATE

, Serial Range: PW16-80001-PW16-80038

1шт.
