/ / / / / / / / (90.116.AX[20]) - GUARD INSTALL,, +E LESS - ASN PW16-80279
Запчасти Case CX31B (90.116.AX[20]) - GUARD INSTALL,, +E LESS - ASN PW16-80279 (90) - PLATFORM, CAB, BODYWORK AND DECALS

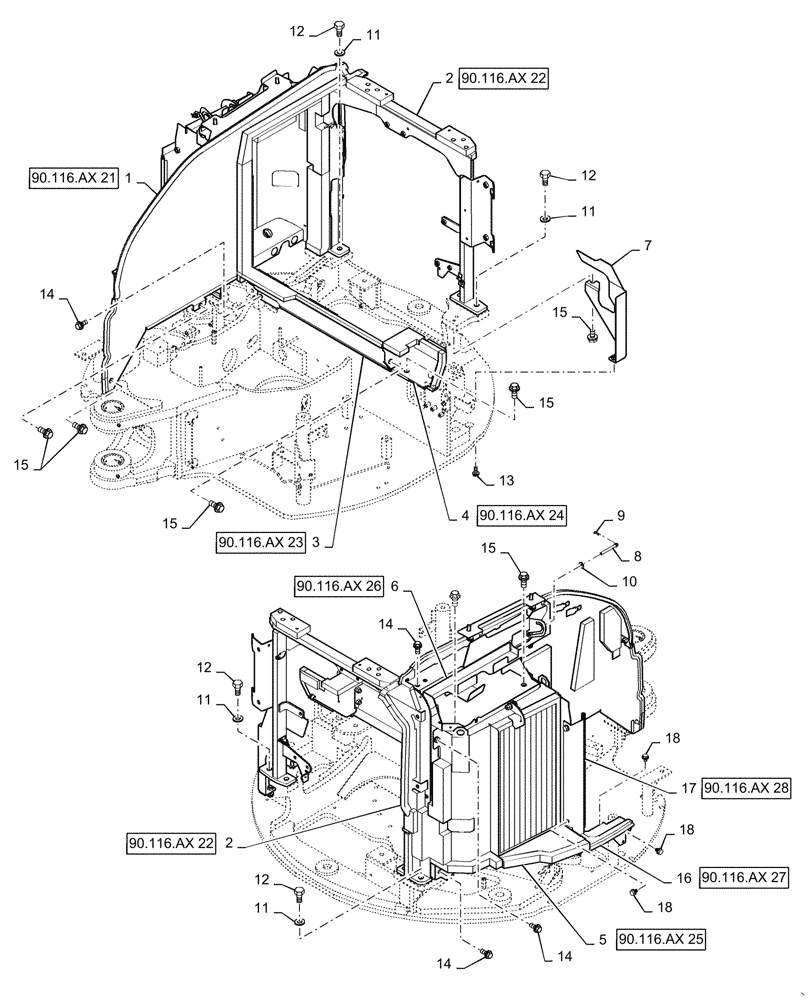

![Схема запчастей Case CX31B - (90.116.AX[20]) - GUARD INSTALL,, +E LESS - ASN PW16-80279 (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5485918.png)
90.116.ax 22
14
12
11
15
6
16
12
15
13
11
2
12
10
5
7
18
8
18
17
14
4
2
18
9
11
15
3
15
1
11
14
15
12
14
90.116.ax 27
90.116.ax 24
90.116.ax 21
90.116.ax 28
90.116.ax 23
90.116.ax 26
90.116.ax 25
90.116.ax 22
1
PX21C01365F1
GUARD
Assy
1шт.
2
PX21C01115F1
SUPPORT
Assy
1шт.
3
PX21C01021F1
COVER ASSY
1шт.
4
PX21C01324F1
GUARD
Assy
1шт.
5
PX22C01148F1
GUARD
Assy
1шт.
6
PX21C01372F1
GUARD
Assy, Cab
1шт.
6
PX21C01090F1
GUARD
Assy, Canopy
1шт.
7
PX21C01453P2
BRACKET
1шт.
8
PX21C01419P1
STAY
1шт.
9
2419R9D2
COTTER PIN
1шт.
10
ZW16P08000
WASHER
1шт.
11
ZW16H16000
WASHER
4шт.
12
ZS18C16040
SCREW,Hex, M16 x 40mm
Cap
4шт.
13
ZM73C10030
BOLT,M10x30mm - Course Thread
Sems
1шт.
14
ZM73C10025
BOLT,M10x25mm - Course Thread
Sems
6шт.
15
ZM73C10020
BOLT,M10x20mm - Course Thread
Sems
11шт.
16
PX21C01250F1
GUARD
Assy
1шт.
17
PX21C01253F1
GUARD
Assy
1шт.
18
ZM73C10016
BOLT,M10x16mm - Course Thread
Sems
4шт.
