(90.116.AX[06]) - GUARD INSTALL, CAB

Запчасти Case CX31B (90.116.AX[06]) - GUARD INSTALL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

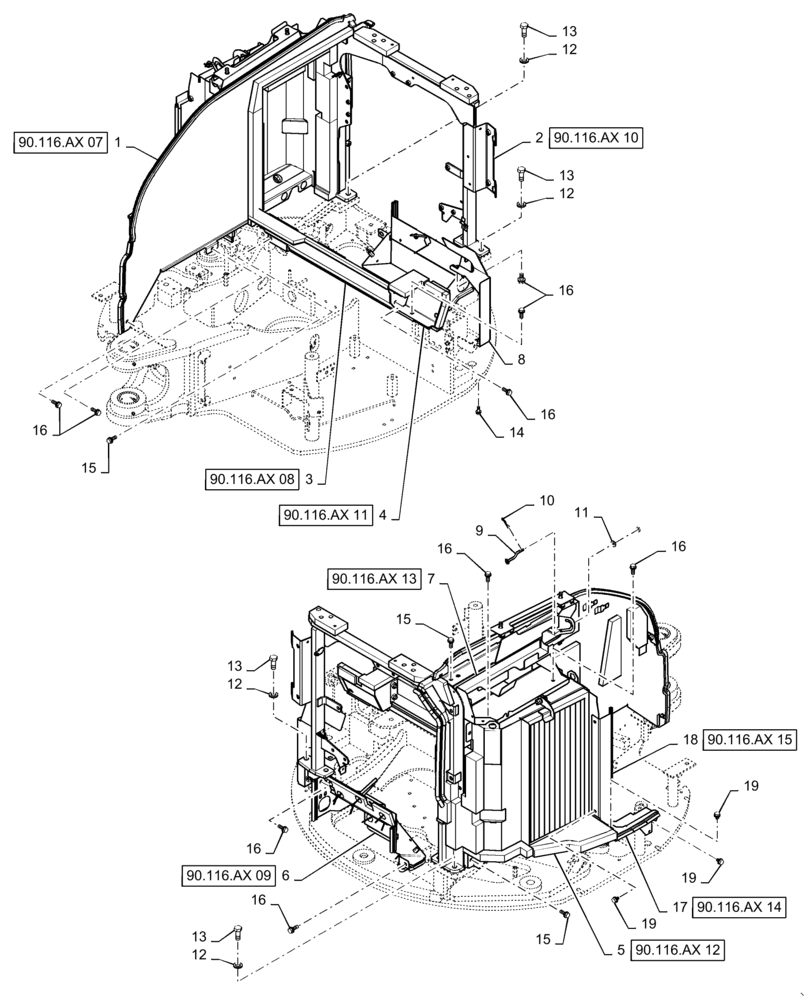

Схема запчастей Case CX31B - (90.116.AX[06]) - GUARD INSTALL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
18
12
5
3
2
9
16
90.116.ax 08
19
13
90.116.ax 15
4
90.116.ax 10
90.116.ax 14
14
19
16
16
7
90.116.ax 12
17
6
11
13
13
12
16
90.116.ax 09
15
16
13
90.116.ax 07
15
15
16
19
90.116.ax 11
12
16
8
12
1
90.116.ax 13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX21C01365F1

GUARD

Assy

1шт.

2

PX21C01115F1

SUPPORT

Assy

1шт.

3

PX21C01021F1

COVER ASSY

1шт.

4

PX21C01324F1

GUARD

Assy

1шт.

5

PX22C01148F1

GUARD

Assy

1шт.

6

PX22C01003F1

GUARD

Assy

1шт.

7

PX21C01090F1

GUARD

Assy

1шт.

8

PX21C01453P1

BRACKET

, Serial Range: PW16-80001-PW16-80098

1шт.

8

PX21C01453P2

BRACKET

, Start Serial: PW16-80099

1шт.

9

PX21C01419P1

STAY

1шт.

10

2419R9D2

COTTER PIN

1шт.

11

ZW16P08000

WASHER

1шт.

12

ZW16H16000

WASHER

4шт.

13

ZS18C16040

SCREW,Hex, M16 x 40mm

Cap

4шт.

14

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

1шт.

15

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

6шт.

16

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

13шт.

17

PX21C01250F1

GUARD

Assy

1шт.

18

PX21C01253F1

GUARD

Assy

1шт.

19

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

4шт.
