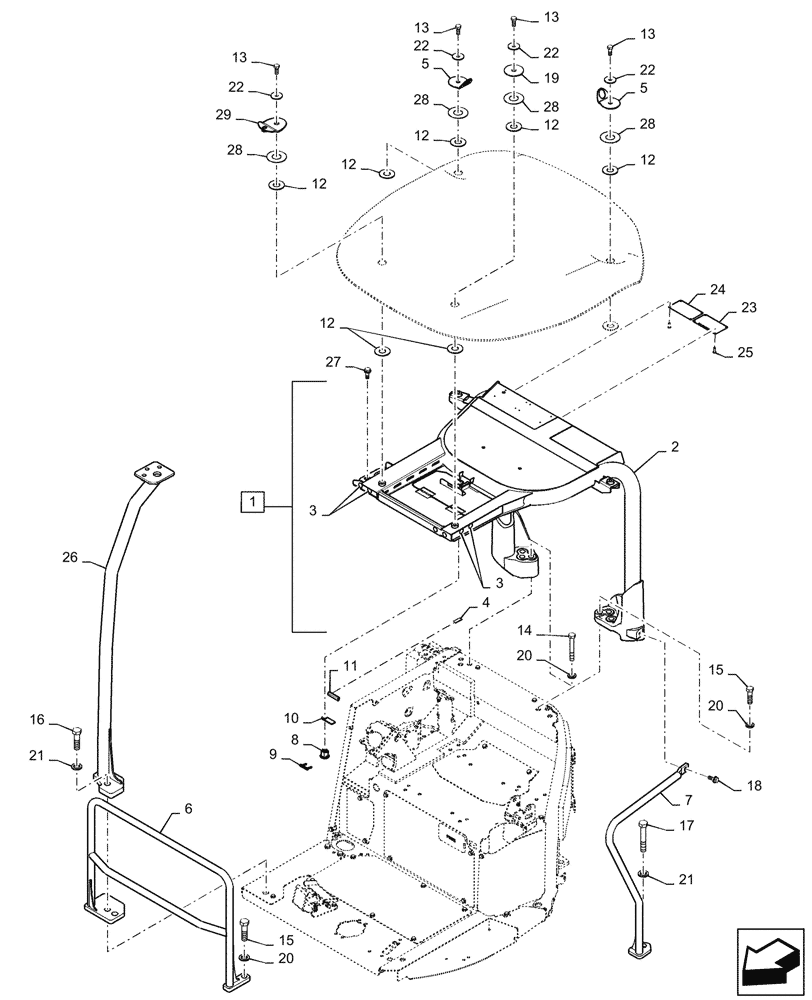

Запчасти Case CX31B (90.114.BG[01]) - CANOPY, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX06C01128F1

SUPPORT

Assy, Incl 2 - 4

1шт.

2

PX06C01115P1

SUPPORT

1шт.

3

YT02C01567D1

PLATE

7шт.

4

PX06C01129P1

RUBBER STRIP

1шт.

5

PX06C01022P1

PLATE

2шт.

6

PX41C00006P1

HANDRAIL

, Serial Range: PW16-80001-PW16-80265

1шт.

6

PX41C00006P2

HANDRAIL

, Start Serial: PW16-80266

1шт.

7

PX41C00004P1

HANDRAIL

1шт.

8

YY21C03567P1

LOCK

1шт.

9

YY21C03803P1

SPRING

1шт.

10

PX06C01092P1

PLATE

1шт.

11

PM22C01020DU

CAP

Trim

1шт.

12

PM06C01096P1

RUBBER

, Serial Range: PW16-80001-PW16-80139

8шт.

12

PX06C01260P1

RUBBER BUSHING

, Start Serial: PW16-80140

8шт.

13

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

4шт.

14

ZS18C16110

SCREW,Hex, M16 x 110mm

Cap

3шт.

15

ZS18C16060

SCREW,Hex, M16 x 60mm

Cap

4шт.

16

ZS18C20075

SCREW,Hex, M20 x 75mm

Cap

1шт.

17

ZS18C20120

SCREW,Hex, M20 x 120mm

Cap

1шт.

18

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

1шт.

19

PM06C01042P1

WASHER

1шт.

20

ZW16H16000

WASHER

7шт.

21

ZW16H20000

WASHER

2шт.

22

2418T22593

WASHER

4шт.

23

PV20T01080P1

PLATE

Number

1шт.

24

PV20T01082P1

DATA PLAQUE

Number, Serial Range: PW16-80001-PW16-80139

1шт.

24

PV20T01082P2

DATA PLAQUE

Number, Start Serial: PW16-80140

1шт.

25

PM06C01076P1

RIVET

, Serial Range: PW16-80001-PW16-80139

8шт.

25

PB06C01093D1

RIVET

, Start Serial: PW16-80140

8шт.

26

PX06C01171P1

SUPPORT

1шт.

27

ZM73C12035

BOLT,M12x35mm - Course Thread

Sems

3шт.

28

PX06C01165P1

WASHER

4шт.

29

PX06C01167P1

BRACKET

1шт.
