(90.110.AP[02]) - PLATE, GROUP, FLOOR, CANOPY - HCP

Запчасти Case CX31B (90.110.AP[02]) - PLATE, GROUP, FLOOR, CANOPY - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS

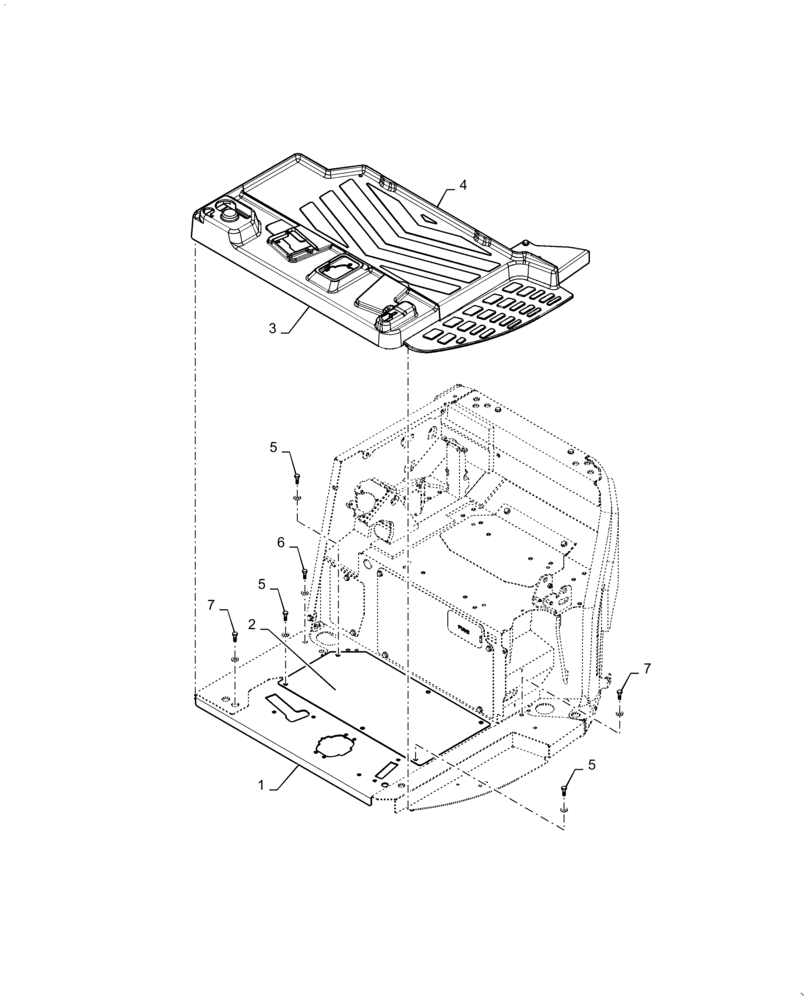

Схема запчастей Case CX31B - (90.110.AP[02]) - PLATE, GROUP, FLOOR, CANOPY - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
5
5
3
4
6
7
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX03M01216P2

PLATE

Floor, Serial Range: PW16-80001-PW16-80194

1шт.

1

PX03M01216P3

PLATE

Floor, Start Serial: PW16-80195

1шт.

2

PX03M01138P1

COVER

1шт.

3

PX26M00011P1

FLOOR MAT

1шт.

4

PX26M00006P1

FLOOR MAT

1шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

6шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

7

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems

2шт.
