(90.110.AP[01]) - PLATE, GROUP, FLOOR, CAB - HCP

Запчасти Case CX31B (90.110.AP[01]) - PLATE, GROUP, FLOOR, CAB - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS

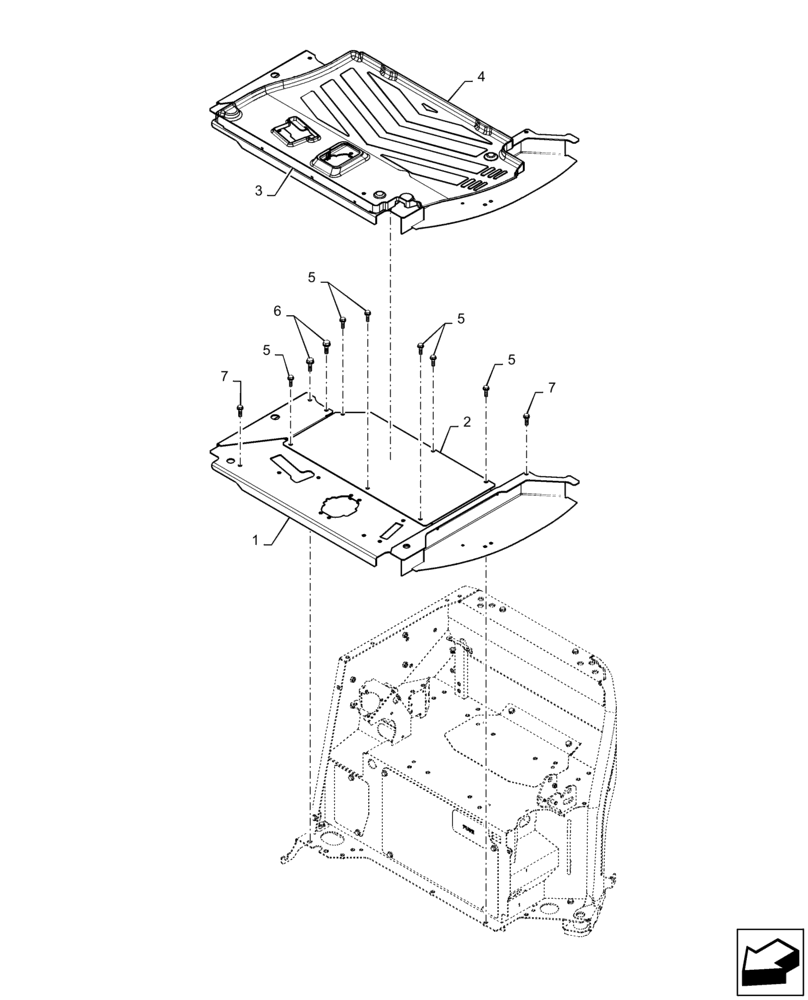

Схема запчастей Case CX31B - (90.110.AP[01]) - PLATE, GROUP, FLOOR, CAB - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
7
5
1
7
5
6
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX03M01218P1

PLATE

Floor, Serial Range: PW16-80001-PW16-80028

1шт.

1

PX03M01218P2

PLATE

Floor, Serial Range: PW16-80029-PW16-80223

1шт.

1

PX03M01218P3

PLATE

Floor, Start Serial: PW16-80224

1шт.

2

PX03M01138P1

COVER

1шт.

3

PX26M00010P1

FLOOR MAT

1шт.

4

PX26M00009P1

FLOOR MAT

1шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Serial Range: PW16-80001-PW16-80038

6шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Start Serial: PW16-80039

7шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

7

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems, Serial Range: PW16-80001-PW16-80038

2шт.

7

ZM73C08030

BOLT,M8x30mm - Course Thread

, Start Serial: PW16-80039

1шт.
