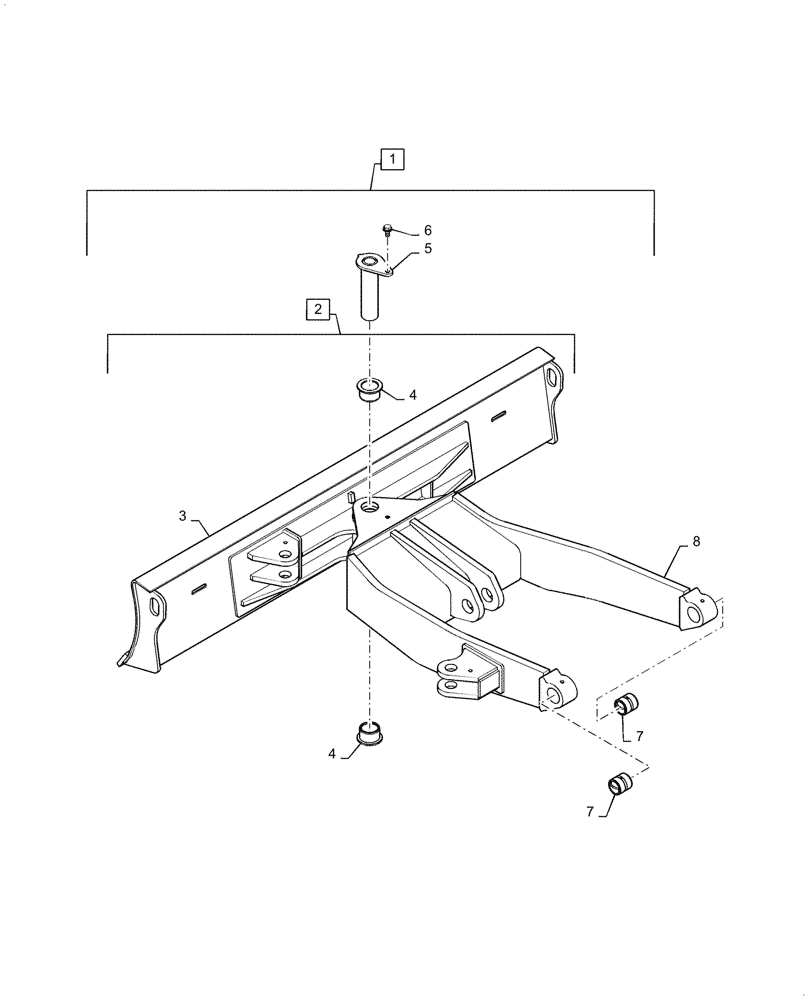

Запчасти Case CX31B (86.110.AD[02]) - DOZER BLADE, ANGLE, ASSY (86) - DOZER

1

NSS

NOT SOLD SEPARAT

Assy, PW51B00114F1, Incl 2 - 7

1шт.

2

PW51B00116F1

DOZER BLADE

Assy, Incl 3 - 4

1шт.

3

PW51B01207P1

CUTTING EDGE

1шт.

4

PW51B01106P1

BUSHING

2шт.

5

PX51B01138P1

PIN

1шт.

6

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

1шт.

7

PW51B01039P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

8

PX51B01167F1

FRAME

1шт.
