(84.912.AB[01]) - ARM, GROUP, BUCKET, LINK

Запчасти Case CX31B (84.912.AB[01]) - ARM, GROUP, BUCKET, LINK (84) - BOOMS, DIPPERS & BUCKETS

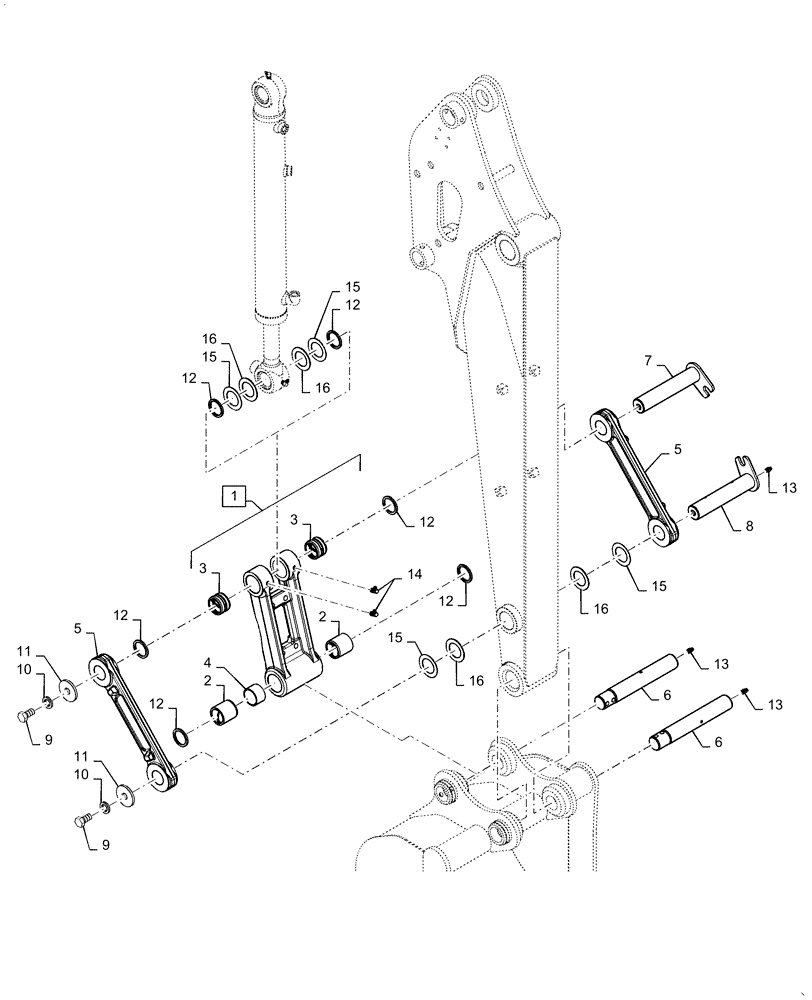

Схема запчастей Case CX31B - (84.912.AB[01]) - ARM, GROUP, BUCKET, LINK (84) - BOOMS, DIPPERS & BUCKETS
12
11
16
12
2
13
12
1
16
3
9
14
2
10
15
10
7
9
5
6
11
13
16
15
4
3
13
8
16
12
15
6
5
15
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX12B01371F1

LINK CONROD

Bucket, Incl 2 - 4

1шт.

2

PX12B01151P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

3

PX12B01246P1

BUSHING,40mm ID x 50mm OD x 32mm L

2шт.

4

PW12B01208D2

COLLAR

1шт.

5

PW12B01224P2

LINK

2шт.

6

PW12B01351P1

PIN

2шт.

7

PX12B01319P1

PIN

1шт.

8

PW12B01311P1

PIN,40mm OD x 210mm L

1шт.

9

ZS18C16030

SCREW,Hex, M16 x 30mm

Cap

2шт.

10

ZW16H16000

WASHER

2шт.

11

PW12B01216P1

WASHER

2шт.

12

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

6шт.

13

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

3шт.

14

ZG91U02000

LUBE NIPPLE

Grease

2шт.

15

PR02B01107P1

SHIM,0.5mm Thk

4шт.

16

PR02B01123D1

SHIM,0.9mm Thk

4шт.
