(35.738.AA[03]) - COVER ASSY, BUCKET, CYLINDER

Запчасти Case CX31B (35.738.AA[03]) - COVER ASSY, BUCKET, CYLINDER (84) - BOOMS, DIPPERS & BUCKETS

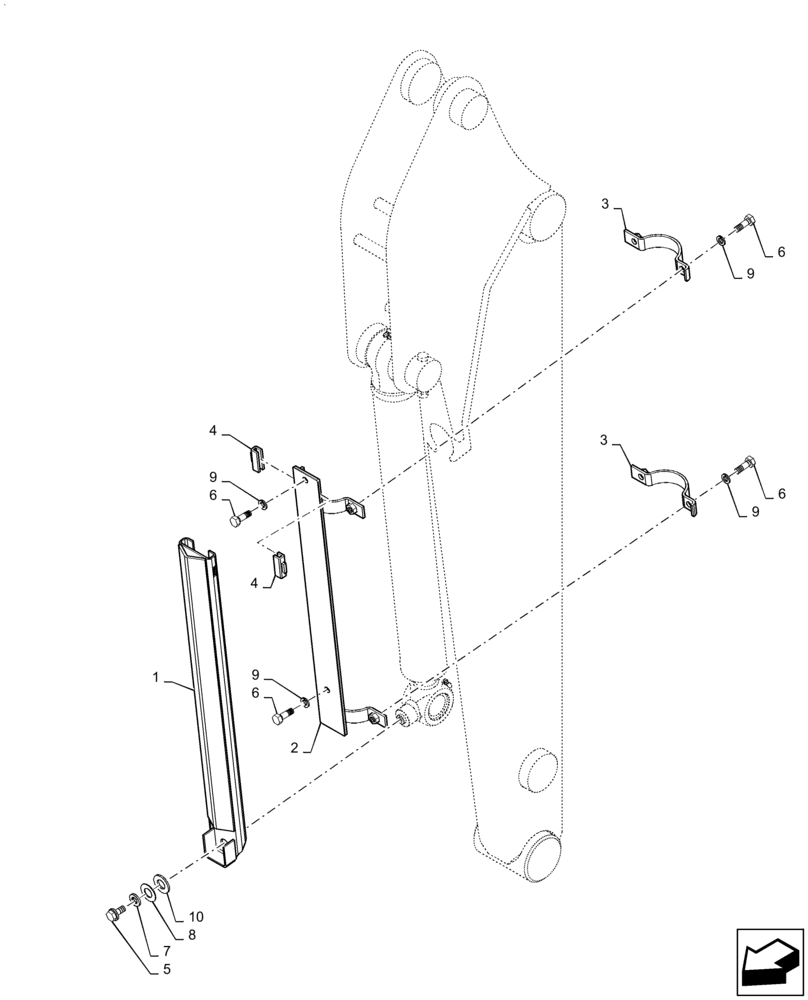

Схема запчастей Case CX31B - (35.738.AA[03]) - COVER ASSY, BUCKET, CYLINDER (84) - BOOMS, DIPPERS & BUCKETS
9
3
6
6
9
3
6
6
4
10
4
8
7
9
9
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX12B01426P1

COVER

Bucket Cylinder

1шт.

2

PX12B01428P1

BRACKET

1шт.

3

PW12B01391P1

BAND

2шт.

4

PW02B01351P1

GUIDE

2шт.

5

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

1шт.

6

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

4шт.

7

ZW16H10000

WASHER

1шт.

8

PN03M01009D2

WASHER

1шт.

9

ZW26X10000

LOCK WASHER

4шт.

10

PW02B01408P1

SHIM,3mm Thk

1шт.

Выбрано товаров: 10
