(71.460.AF) - LUBRICATION LINE, SWING CYLINDER ATTACHMENT

Запчасти Case CX31B (71.460.AF) - LUBRICATION LINE, SWING CYLINDER ATTACHMENT (71) - LUBRICATION SYSTEM

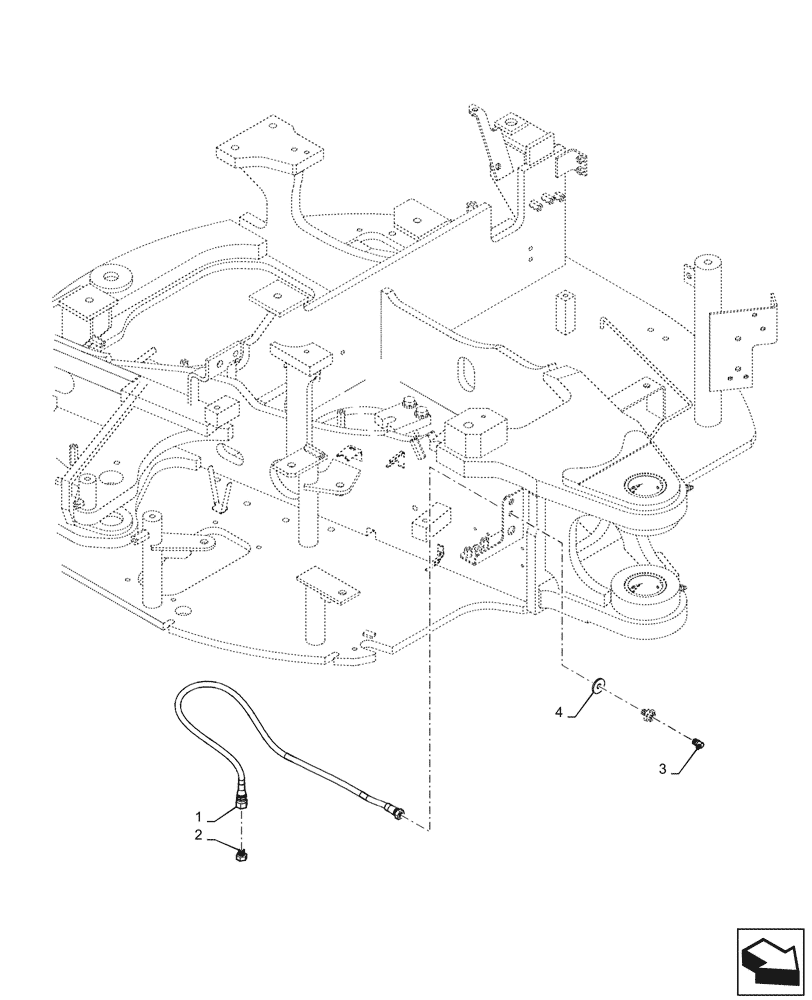

Схема запчастей Case CX31B - (71.460.AF) - LUBRICATION LINE, SWING CYLINDER ATTACHMENT (71) - LUBRICATION SYSTEM
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PH42H01008DJ

HOSE

Swing Cylinder Lube

1шт.

2

HH25Z04002G1

CONNECTION

, Serial Range: PW16-80001-PW16-80200

1шт.

2

YJ71H01001P1

HYD CONNECTOR

, Start Serial: PW16-80201

1шт.

3

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease

1шт.

4

ZW16P16000

WASHER

1шт.
