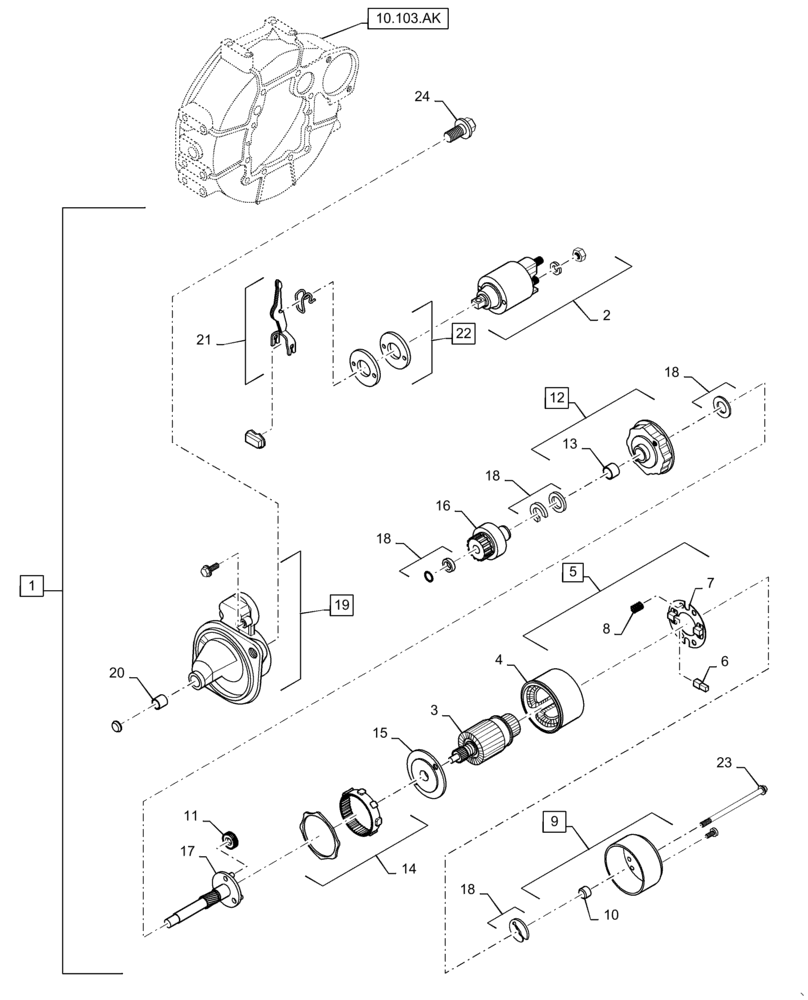

Запчасти Case CX31B (55.201.AE) - STARTING, MOTOR (55) - ELECTRICAL SYSTEMS

1

VV12924277010

STARTER MOTOR

Incl 2 - 23

1шт.

2

VV12969877020

SWITCH

Assy

1шт.

3

NSS

NOT SOLD SEPARAT

Armature Assy, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Yoke Assy, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Holder Assy, Brush, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Brush, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Brush Set, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

4шт.

9

NSS

NOT SOLD SEPARAT

Cover Assy, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Metal, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

3шт.

12

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Internal, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Pinion Assy, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Washer Set, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Case Assy, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Metal, Starter, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Lever Set, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Cover Assy, Dust, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Bolt, Through, Incl in 1

2шт.

24

VV26106120252

BOLT,M12 x 25mm

M12 X 25 Plated

2шт.
