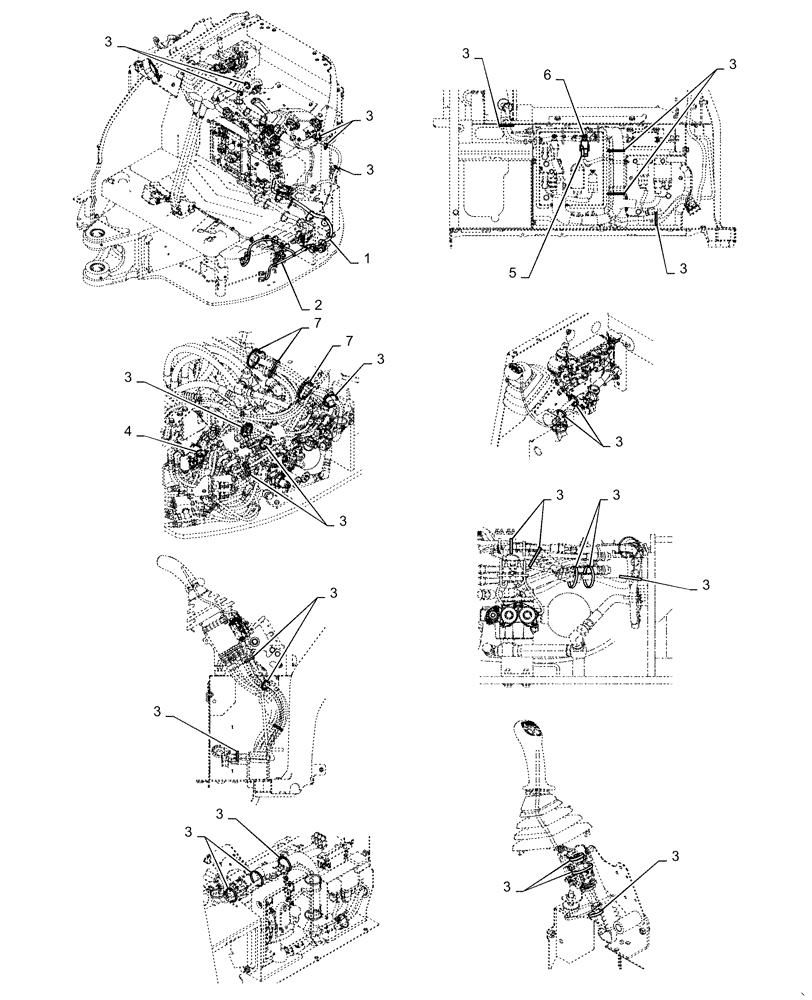

Запчасти Case CX31B (55.100.DP[05]) - HARNESS, ASSY (55) - ELECTRICAL SYSTEMS

1

PX11E01068P2

WIRE HARNESS

Cab, Joystick

1шт.

2

PX11E01069P1

WIRE HARNESS

Solenoid Valve

1шт.

3

PY01P01043D3

CABLE TIE,188mm L

Clip

27шт.

4

PY01P01043DA

CABLE TIE,2.50mm W x 205mm L

Clip, Required in case of N & B

1шт.

5

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close, Liquid Crystal Display, Quick Coupler)

1шт.

6

ZM61C06012

BOLT

Sems

1шт.

7

PY01P01043D5

CABLE TIE,301mm L

Clip

3шт.
