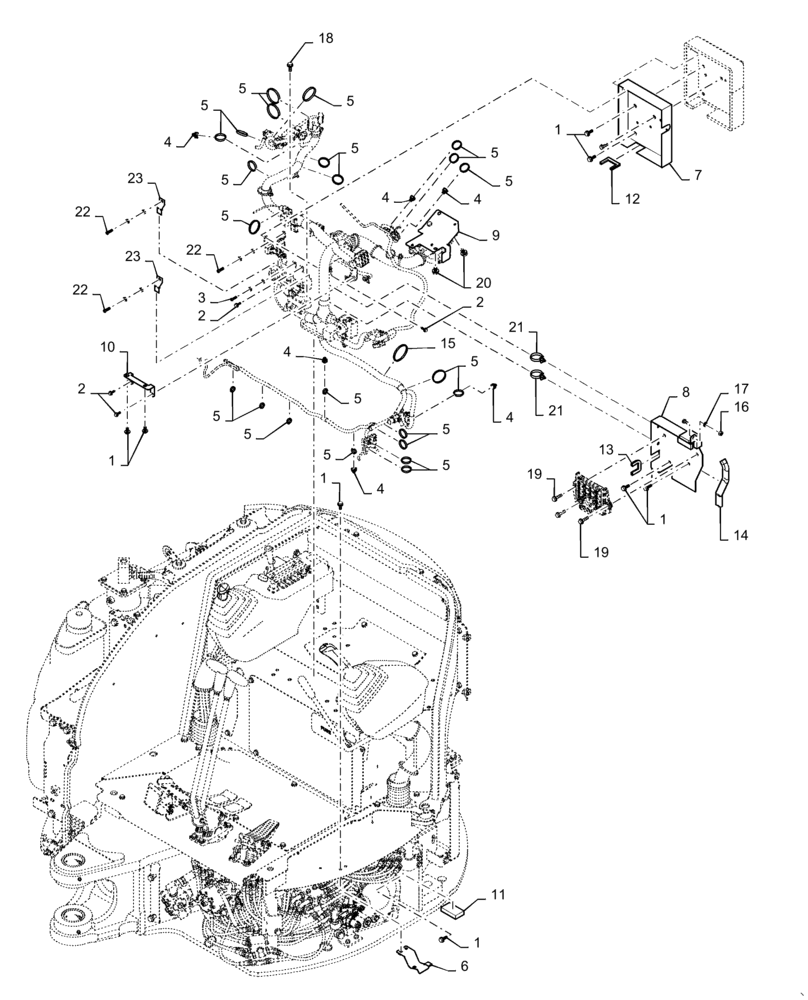

Запчасти Case CX31B (55.100.DP[04]) - HARNESS, ASSY, UPP - FLOOR (55) - ELECTRICAL SYSTEMS

1

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

11шт.

2

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

4шт.

3

ZM61C05012

BOLT

Sems

1шт.

4

YN13E01375P1

CLIP,M8 x 8.20mm Shank

6шт.

5

PY01P01043D3

CABLE TIE,188mm L

Clip

26шт.

6

PX13E01059P1

BRACKET

1шт.

7

PX13E01127P1

BRACKET

1шт.

8

PX13E01115P2

BRACKET

1шт.

9

PX13E01125P1

BRACKET

1шт.

10

PX13E01061P1

PLATE

1шт.

11

PX13E01063P1

RUBBER STRIP

1шт.

12

PE21C01070DG

TRIM

1шт.

13

PM22C01020D3

SEAL PROTECTION

Trim

1шт.

14

2427P1836D7

WEATHERSTRIP

1шт.

15

PY01P01043D5

CABLE TIE,301mm L

Clip

1шт.

16

ZN18C08007

NUT

1шт.

17

ZW26X08000

LOCK WASHER

1шт.

18

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

1шт.

19

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

20

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

2шт.

21

YN03E01001D5

CLIP

2шт.

22

ZM61C06012

BOLT

Sems

3шт.

23

WA03E01029P1

BRACKET

2шт.
