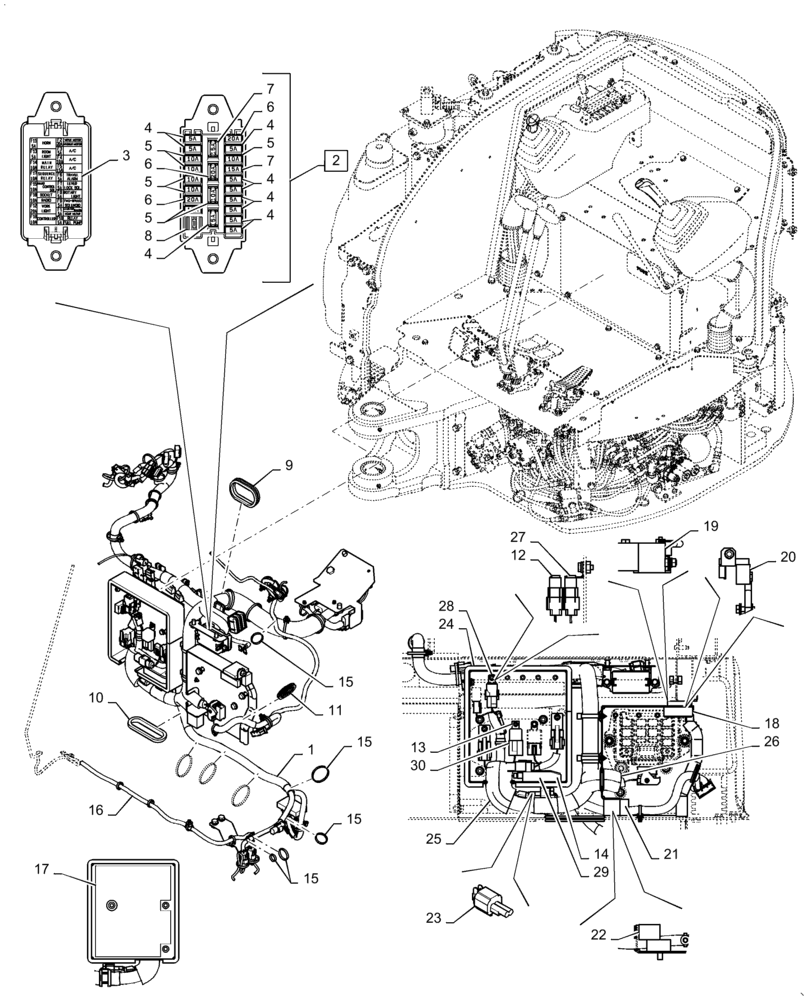

Запчасти Case CX31B (55.100.DP[03]) - HARNESS, ASSY, UPPER, FLOOR (55) - ELECTRICAL SYSTEMS

1

PX13E01053P2

WIRE HARNESS

Floor (Attaches to display), Serial Range: PW16-80001-PW16-80046

1шт.

1

PX13E01053P3

WIRE HARNESS

Floor (Attaches to display), Start Serial: PW16-80047

1шт.

2

PX73E00003F1

FUSE BOX

Assy, Incl 3 - 8

1шт.

3

PX73E01003P1

DECAL

Label

1шт.

4

YN24E00016S005

FUSE,5amp

10шт.

5

YN24E00016S006

FUSE,10amp

7шт.

6

YN24E00016S008

FUSE,20amp

3шт.

7

YN24E00016S007

FUSE,15amp

2шт.

8

PX73E00003S009

FUSE BOX

Assy

1шт.

9

PX13E01062P1

GROMMET

1шт.

10

PX13E01117P1

GROMMET

1шт.

11

PX13E01026P1

GROMMET

1шт.

12

PM24S00001P1

RELAY

Outer (Used for Neutral Start, Charge Indicator, Quick Coupler)

1шт.

13

ZM61C05012

BOLT

1шт.

14

ZM73C06020

BOLT,M6x20mm - Course Thread

1шт.

15

PY01P01043D3

CABLE TIE,188mm L

4шт.

16

PX13E01054P1

WIRE HARNESS

1шт.

17

PX13E01111P1

INSULATION

1шт.

18

PX13E01068P1

INSULATION

1шт.

19

PX13E01069P1

INSULATION

1шт.

20

PX13E01070P1

INSULATION

1шт.

21

PX13E01072P1

INSULATION

1шт.

22

PX13E01073P1

INSULATION

1шт.

23

PS26E01001P1

RESISTOR

Engine

1шт.

24

PX13E01112P1

INSULATION

1шт.

25

PX13E01121P1

INSULATION

1шт.

26

PX13E01122P1

INSULATION

1шт.

27

PA24E01001P1

RELAY,12V - 20amp

Inner (Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close, Liquid Crystal Display, Quick Coupler)

1шт.

28

ZM61C06012

BOLT

1шт.

29

PA24S00002P4

RELAY,12V, 0.12W

(Used for Sequence Box)

1шт.

30

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.
