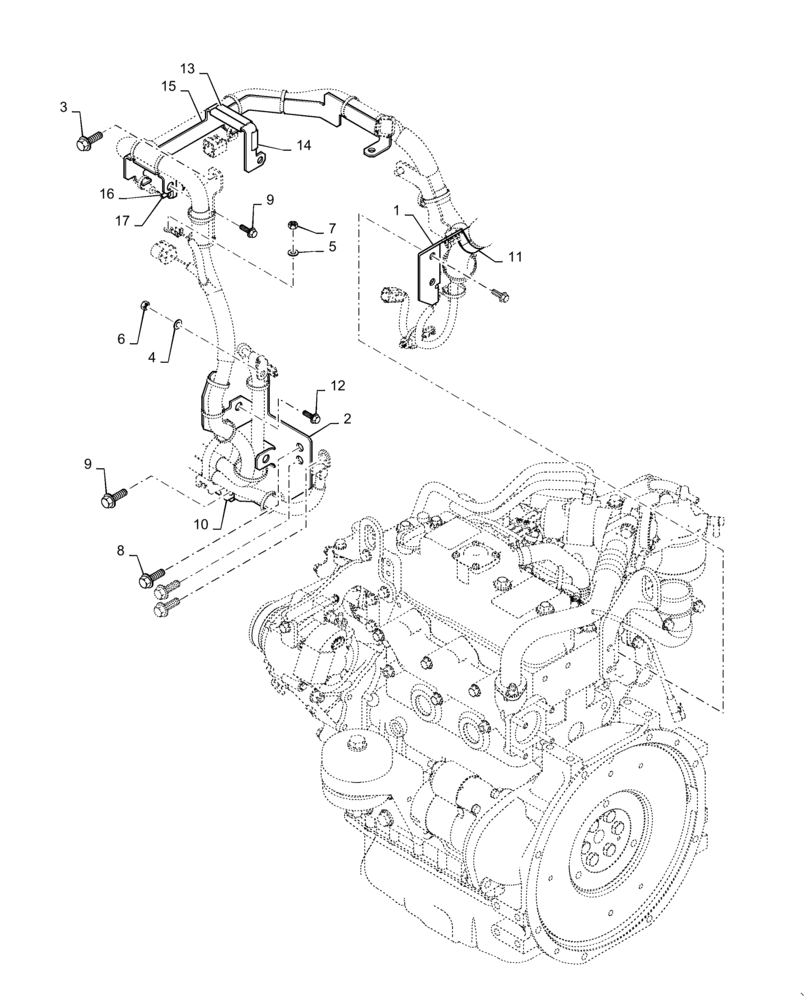

Запчасти Case CX31B (55.100.DP[02]) - HARNESS, ASSY, UPPER, FRAME (OVER ENGINE) (55) - ELECTRICAL SYSTEMS

1

PX13E01048P1

BRACKET

1шт.

2

PX13E01047P1

BRACKET

1шт.

3

PX13E01097P1

PLATE

1шт.

4

ZW16P08000

WASHER

1шт.

5

ZW16P06000

WASHER

1шт.

6

ZN18C08007

NUT

1шт.

7

ZN18C06005

NUT

1шт.

8

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

3шт.

9

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

10

PS13E01009P1

CLIP

1шт.

11

EW02E01015DA

CLIP

1шт.

12

PX13E01094P1

PLATE

1шт.

13

PM22C01020DA

SOFT TRIM

2шт.

14

PM22C01020DB

TRIM PANEL

1шт.

15

PX13E01095P2

BRACKET

1шт.

16

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

17

PA13E01027P1

PACKING

1шт.
