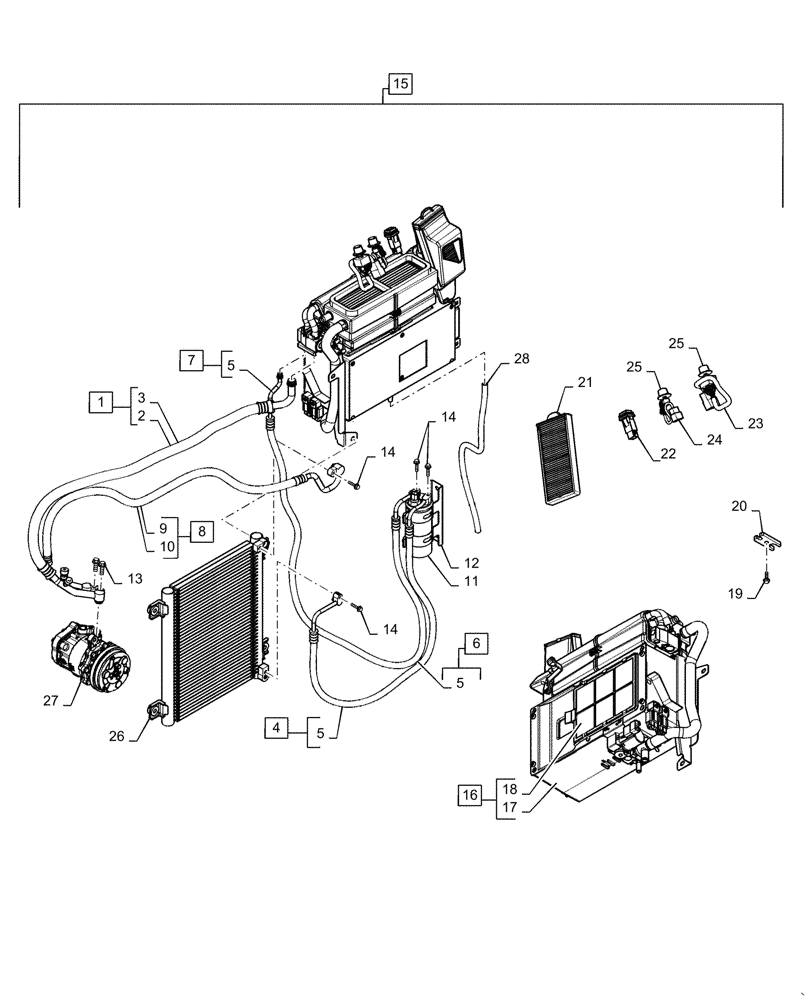

Запчасти Case CX31B (50.200.BY[03]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

1

PX20M01075F1

A/C HOSE

Assy, A/C to Compressor, Incl 2, 3

1шт.

2

2445Z1604D5

O-RING

2шт.

3

YN20M01725P1

CAP

1шт.

4

PX20M01076F1

A/C HOSE

Assy, Receiver-Dryer to Condensor, Incl 5

1шт.

5

2445Z1604D6

O-RING

5шт.

6

PX20M01081F1

A/C HOSE

Assy, A/C to Receiver- Dryer, Incl 5

1шт.

7

PX20M01035F1

TUBE

Assy, Incl 5

1шт.

8

PX20M01077F1

A/C HOSE

Assy, Compressor to Condensor, Incl 9, 10

1шт.

9

2445Z1604D4

O-RING

2шт.

10

YN20M01726P1

CAP

1шт.

11

PY20M01300F1

RECEIVER-DRYER,Air Conditioning

1шт.

12

YT20M01187P1

BRACKET

1шт.

13

YT96V00001S009

SCREW

Cap

2шт.

14

YT96V00001S010

CAP

Screw

4шт.

15

PS20M00004F1

AIR CONDITIONER

Assy, Incl 16 - 25

1шт.

16

PS20M00006F1

AIR CONDITIONER

Assy, Incl 17, 18, Serial Range: PW16-80001-PW16-80004

1шт.

17

PS20M00005F1

AIR CONDITIONER

, Start Serial: PW16-80005

1шт.

18

PS50V01006P1

CAB FILTER

, Serial Range: PW16-80001-PW16-80004

1шт.

18

PS20M00005S014

FILTER

, Start Serial: PW16-80005

1шт.

19

YT20M00009S005

BOLT

Machine Screw

1шт.

20

LQ20M01169P1

PLATE

1шт.

21

PS50V01005P1

CAB FILTER

1шт.

22

PS50S00005P1

ROCKER SWITCH

(Used for A/C)

1шт.

23

PS20M01076P1

WIRE HARNESS

A/C

1шт.

24

PS20M01077P1

ROTARY SWITCH

A/C

1шт.

25

PS20M01078P1

KNOB

2шт.

26

PS20M01075F1

CONDENSER

1шт.

27

PS91V00002F1

AIRCOND. COMPRESSOR

Assy

1шт.

28

PX20M01041P1

HOSE

Drain

1шт.
