Запчасти Case CX31B (50.200.BY[01]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

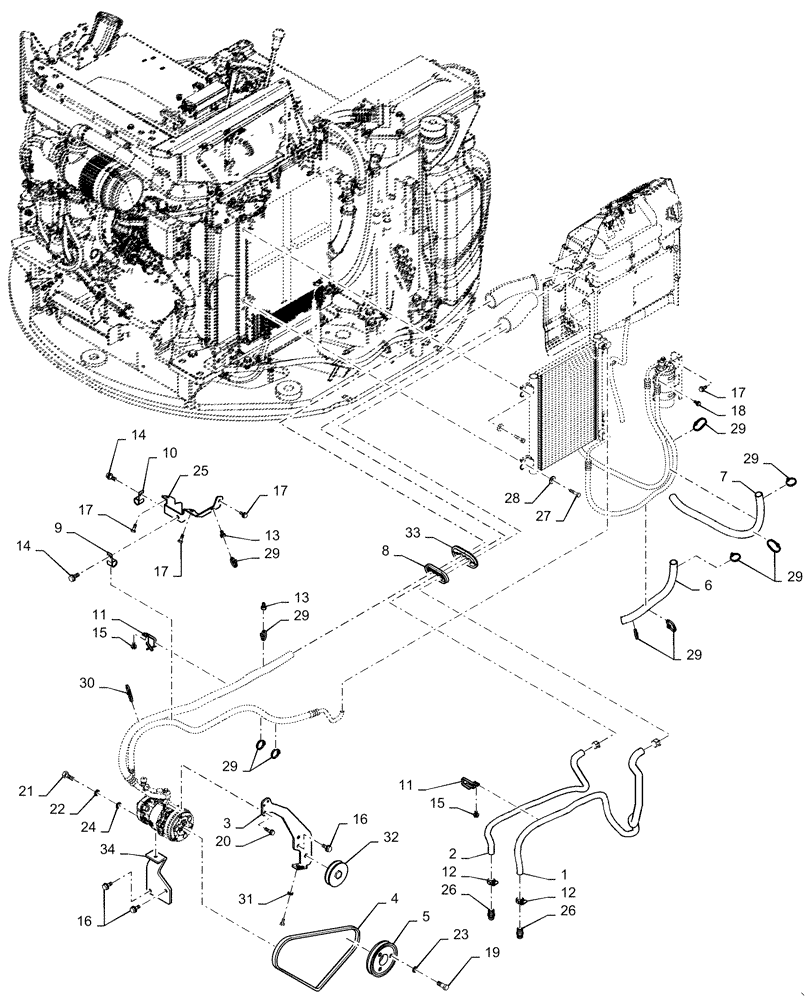

Схема запчастей Case CX31B - (50.200.BY[01]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL
17
19
4
14
16
29
29
29
29
29
16
20
25
17
13
2
29
26
33
27
13
34
12
17
15
8
11
5
9
14
23
29
6
7
3
24
1
30
32
10
15
26
18
12
31
17
22
21
28
11

Артикул

Название

Примечание

Количество

1

PX20M01048P1

INSULATION

A/C to Compressor

1шт.

2

PX20M01049P1

INSULATION

A/C to Receiver-Dryer

1шт.

3

PX20M01054P1

BRACKET

1шт.

4

PW20M01097D6

V-BELT

A/C

1шт.

5

PX20M01074P1

PULLEY

1шт.

6

2418Z1333D15

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 300mm Length

1шт.

7

2418Z1333D38

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 700mm Length

1шт.

8

PX20M01057P1

GROMMET

1шт.

9

ZC46X19011

CLIP

1шт.

10

ZC46X25011

CLIP

1шт.

11

2432R233D3

CLIP

2шт.

12

ZC16X01800

CLIP

6шт.

13

YN13E01375P1

CLIP,M8 x 8.20mm Shank

3шт.

14

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

15

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

16

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

17

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

5шт.

18

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

19

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

3шт.

20

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

1шт.

21

ZS18C08100

SCREW,Hex, M8 x 100mm

Cap

1шт.

22

ZW26X08000

LOCK WASHER

1шт.

23

ZW26X10000

LOCK WASHER

3шт.

24

ZW16P08000

WASHER

1шт.

25

PX20M01079P1

BRACKET

1шт.

26

2444Z1630

FITTING

Connector

2шт.

27

ZS18C08035

SCREW,Hex, M8 x 35mm

Cap

4шт.

28

PV01P01007P1

WASHER

4шт.

29

PY01P01043D3

CABLE TIE,188mm L

Clip

13шт.

30

PY01P01043D5

CABLE TIE,301mm L

Clip

10шт.

31

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

32

LE20M01055P1

PULLEY

Assy

1шт.

33

PX20M01058P1

INSULATION

1шт.

34

PX20M01062P1

BRACKET

1шт.

Выбрано товаров: 34
