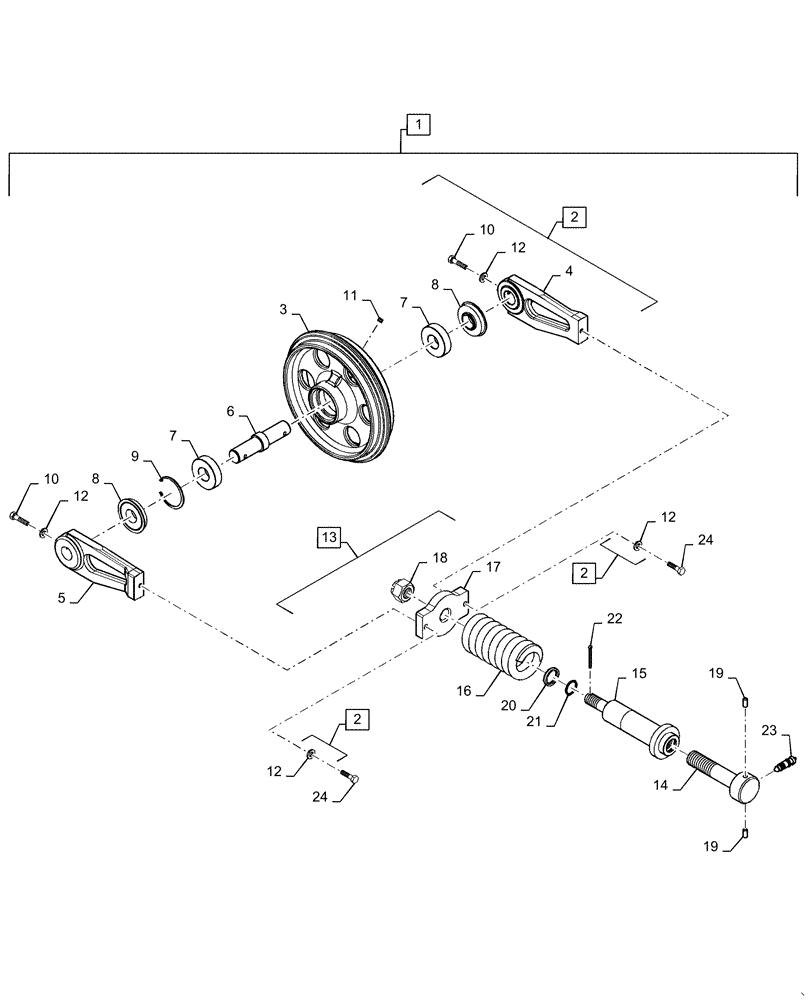

Запчасти Case CX31B (48.134.AA[02]) - IDLER, ASSY, CRAWLER, RIGHT (48) - TRACKS & TRACK SUSPENSION

1

PX52D00039F1

IDLER

Assy, Crawler, Incl 2 - 24

1шт.

2

PX52D00041F1

IDLER

Assy, Incl 3 - 12

1шт.

3

PX52D00022P2

IDLER

1шт.

4

PX52D01027P1

COLLAR

1шт.

5

PX52D01028P1

COLLAR

1шт.

6

PX52D01014P1

SHAFT

1шт.

7

PW52D01009P1

BEARING,35mm ID x 80mm OD x 21mm W

2шт.

8

PH52D01006P1

SEAL,41mm ID x 88mm OD x 19mm Thk

2шт.

9

ZR26X08000

SNAP RING

1шт.

10

PX52D01015P1

CAPSCREW

2шт.

11

PV52D01007P1

PLUG

1шт.

12

ZW16H10000

WASHER

4шт.

13

PX54D00012F1

IDLER

Adjust Assy, Incl 14 - 23

1шт.

14

PX01V01008P1

PISTON

1шт.

15

PX70V00007P1

GREASE

Cylinder

1шт.

16

PX54D01010P1

SPRING

1шт.

17

PX54D01028P1

PLATE

1шт.

18

PX54D01029P1

NUT

1шт.

19

PX54D01014P1

PIN,10mm OD x 24mm L

2шт.

20

PW54D01006P1

OIL SEAL

1шт.

21

ZD12G03500

O-RING,34.40mm ID x 40.60mm OD x 3.10mm

1шт.

22

ZP15D05050

COTTER PIN

Split

1шт.

23

PX80B01026P1

LUBE NIPPLE

Grease

1шт.

24

ZS18C10040

SCREW,Hex, M10 x 40mm

Cap

2шт.
