(48.120.AQ[03]) - MOTOR, ASSY, PROPEL

Запчасти Case CX31B (48.120.AQ[03]) - MOTOR, ASSY, PROPEL (48) - TRACKS & TRACK SUSPENSION

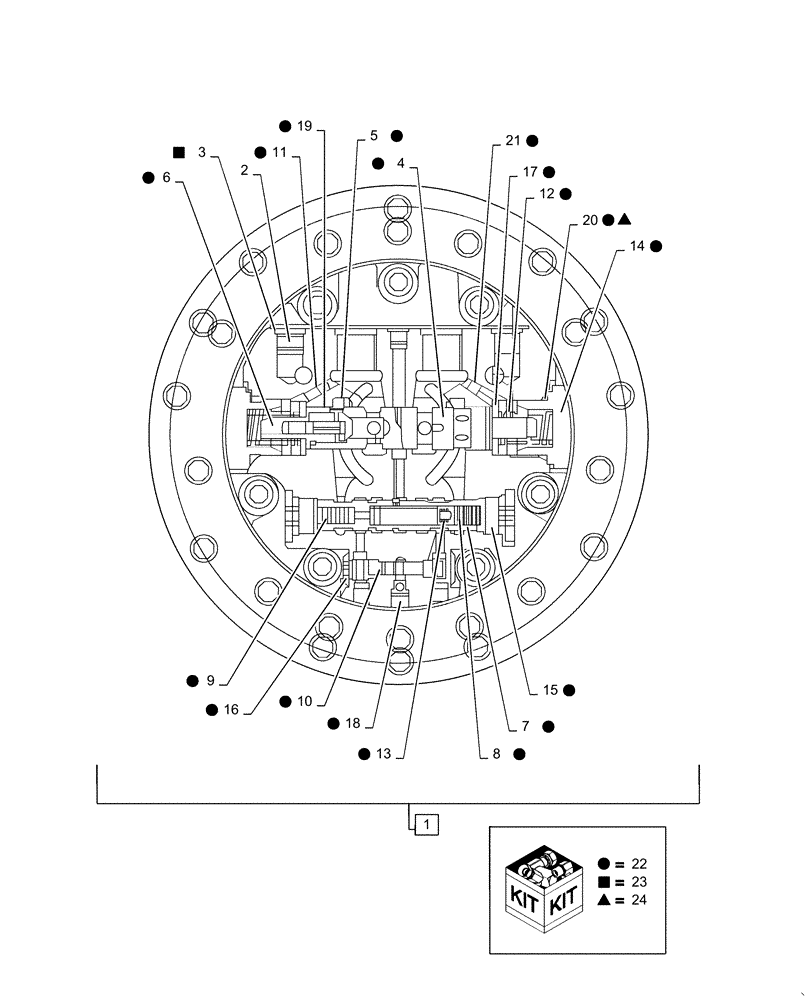

Схема запчастей Case CX31B - (48.120.AQ[03]) - MOTOR, ASSY, PROPEL (48) - TRACKS & TRACK SUSPENSION
2
17
21
22
22
24
22
22
24
22
22
22
1
9
8
23
22
13
24
11
5
6
22
22
22
22
3
7
15
22
22
22
22
12
19
23
14
18
16
22
23
22
22
22
4
10
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX15V00027F1

HYDRAULIC MOTOR

Assy, Propel Incl 2 - 24

1шт.

2

PM22V00004S006

PLUG

1шт.

3

ZD12P01100

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 22

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Check, Incl in 1, 22

2шт.

6

NSS

NOT SOLD SEPARAT

Spring Guide, Incl in 1, 22

2шт.

7

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 22

1шт.

8

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 22

1шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 22

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 22

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 22

2шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 22

2шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 22

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 22

2шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 22

2шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 22

2шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 1, 22

2шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 22

9шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1, 22

2шт.

20

ZD12P02500

O-RING

2шт.

21

NSS

NOT SOLD SEPARAT

Choke, Incl in 1, 24

2шт.

22

PV15V00026R420

REPAIR KIT

Incl 4 (Qty 1), 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 10 (Qty 1), 13 (Qty 1), 5 (Qty 2), 6 (Qty 2), 11 (Qty 2), 12 (Qty 2), 14 (Qty 2), 15 (Qty 2), 16 (Qty 2), 17 (Qty 2), 19 (Qty 2), 20 (Qty 2), 21 (Qty 2), 18 (Qty 9)

1шт.

23

PV15V00026R460

REPAIR KIT

Incl 3 (Qty 1)

1шт.

24

PV15V00026R470

REPAIR KIT

Incl 20

1шт.
