Запчасти Case CX31B (48.120.AQ[02]) - MOTOR, ASSY, PROPEL (48) - TRACKS & TRACK SUSPENSION

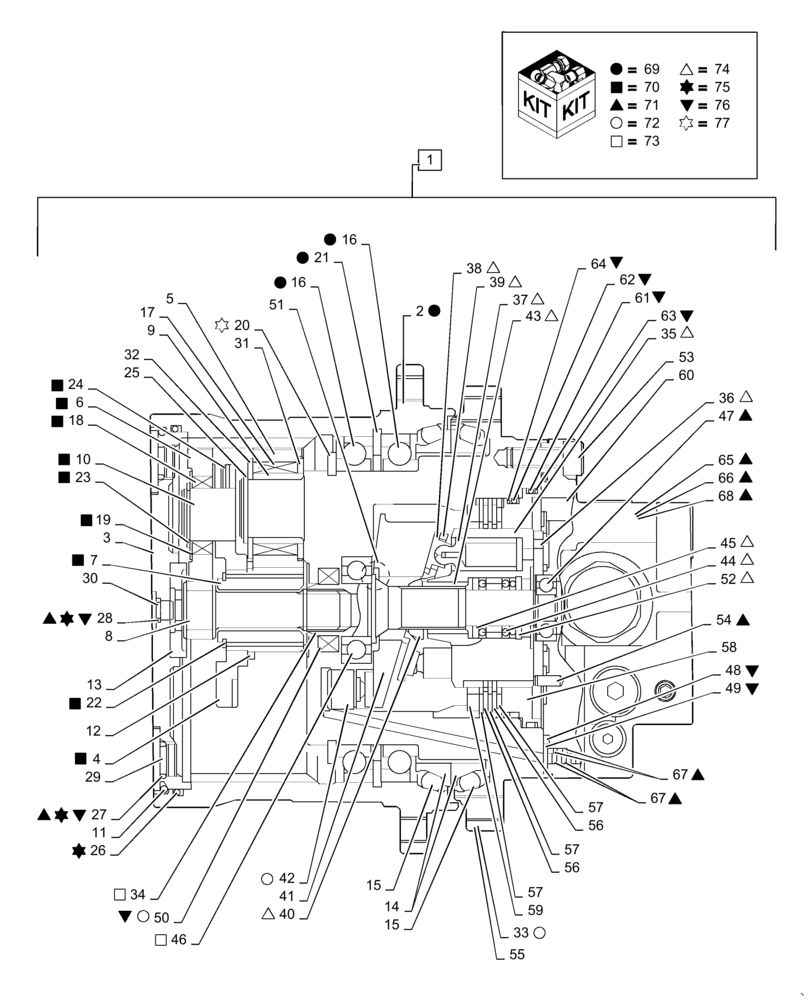

Схема запчастей Case CX31B - (48.120.AQ[02]) - MOTOR, ASSY, PROPEL (48) - TRACKS & TRACK SUSPENSION
20
68
76
69
75
19
6
74
69
52
70
59
42
69
9
70
70
67
54
69
17
36
70
76
77
74
58
73
63
43
73
71
16
69
27
61
77
5
50
45
66
71
72
76
74
39
70
51
41
73
22
71
57
70
70
70
74
25
30
31
67
76
13
34
77
74
71
18
1
76
76
74
32
24
12
33
4
23
8
72
21
10
15
15
71
11
71
35
75
76
16
75
70
74
76
69
3
62
73
56
46
2
7
60
71
72
74
37
74
55
71
29
56
71
64
47
74
74
72
70
49
76
70
40
65
75
71
26
38
28
76
14
76
57
48
75
53
72
71
74
57
44

Артикул

Название

Примечание

Количество

1

PX15V00027F1

HYDRAULIC MOTOR

Assy, Propel, Incl 2 - 68

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1, 69

1шт.

3

PV15V00008S102

COVER

1шт.

4

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1, 70

1шт.

5

PV15V00026S106

GEAR

4шт.

6

NSS

NOT SOLD SEPARAT

Gear, Incl in 1, 70

3шт.

7

NSS

NOT SOLD SEPARAT

Gear, Incl in 1, 70

1шт.

8

PV15V00026S109

GEAR

1шт.

9

PV15V00008S110

RING

4шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1, 70

3шт.

11

PV15V00008S113

SNAP RING

1шт.

12

PV15V00008S115

COLLAR

1шт.

13

PV15V00026S116

RING

1шт.

14

PV15V00026S117

VALVE SEAT

2шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1, 69

2шт.

17

PV15V00008S120

NEEDLE BEARING

92шт.

18

NSS

NOT SOLD SEPARAT

Needle, Incl in 1, 70

48шт.

19

NSS

NOT SOLD SEPARAT

Washer, Thrust, Incl in 1, 70

6шт.

20

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 1, 77

1шт.

21

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 1, 69

1шт.

22

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 1, 70

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 1, 70

3шт.

24

NSS

NOT SOLD SEPARAT

Spring Pin, Incl in 1, 70

3шт.

25

PV15V00026S128

RING

4шт.

26

PV15V00026S129

O-RING

1шт.

27

ZD12P01400

O-RING

4шт.

28

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

3шт.

29

PH15V00002S132

PLUG

2шт.

30

PV15V00026S133

PLUG

1шт.

31

PV15V00008S140

THRUST WASHER

4шт.

32

PV15V00008S141

THRUST WASHER

4шт.

33

NSS

NOT SOLD SEPARAT

Body, Incl in 1, 72

1шт.

34

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1, 73

1шт.

35

NSS

NOT SOLD SEPARAT

Cylinder Barrel, Incl in 1, 74

1шт.

36

NSS

NOT SOLD SEPARAT

Plate, Incl in 1, 74

1шт.

37

NSS

NOT SOLD SEPARAT

Piston, Incl in 1, 74

9шт.

38

NSS

NOT SOLD SEPARAT

Shoe, Incl in 1, 74

9шт.

39

NSS

NOT SOLD SEPARAT

Shoe Holder, Incl in 1, 74

1шт.

40

NSS

NOT SOLD SEPARAT

Barrel Holder, Incl in 1, 74

1шт.

41

PX15V00027S210

PLATE

1шт.

42

NSS

NOT SOLD SEPARAT

Piston, Incl in 1, 72

1шт.

43

NSS

NOT SOLD SEPARAT

Pin, Incl in 1, 74

3шт.

44

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 74

1шт.

45

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1, 74

2шт.

46

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1, 73

1шт.

47

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1, 71

1шт.

48

ZD12G12500

O-RING,124.40mm ID x 130.60mm OD x 3.10mm

1шт.

49

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

2шт.

50

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 1, 72, 76

1шт.

51

PH15V00002S236

BALL

2шт.

52

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 1, 74

1шт.

53

ZS28C10025

SCREW,Hex Socket Head, M10 x 25mm

Cap

7шт.

54

NSS

NOT SOLD SEPARAT

Pin, Spring, Incl in 1, 71

1шт.

55

PY15V00002S248

SPLIT PIN/SAFETY PIN

1шт.

56

PV15V00026S225

PLATE

2шт.

57

PV15V01160S226

PLATE

3шт.

58

PV15V00026S227

PISTON

1шт.

59

PX15V00027S228

SPACER

1шт.

60

PY15V00011S219

SPRING

6шт.

61

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

62

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

63

ZD75G11000

RING

Back-Up

1шт.

64

ZD75G10000

BACK-UP RING

1шт.

65

NSS

NOT SOLD SEPARAT

Body, Incl in 1, 71

1шт.

66

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 71

1шт.

67

NSS

NOT SOLD SEPARAT

Choke, Incl in 1, 71

5шт.

68

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 71

2шт.

69

PX15V00027R400

REPAIR KIT

Incl 2 (Qty 1), 21 (Qty 1), 16 (Qty 2)

1шт.

70

PV15V00026R410

REPAIR KIT

Incl 4 (Qty 1), 7 (Qty 1), 22 (Qty 1), 6 (Qty 3), 10 (Qty 3), 23 (Qty 3), 24 (Qty 3), 19 (Qty 6), 18 (Qty 48)

1шт.

71

PV15V00026R420

REPAIR KIT

Incl 47 (Qty 1), 54 (Qty 1), 65 (Qty 1), 66 (Qty 1), 27 (Qty 2), 28 (Qty 2), 68 (Qty 2), 67 (Qty 5)

1шт.

72

PV15V00026R430

REPAIR KIT

Incl 33, 42, 50

1шт.

73

PV15V00026R440

REPAIR KIT

Incl 34, 46

1шт.

74

PV15V00026R450

REPAIR KIT

Incl 35 (Qty 1), 36 (Qty 1), 39 (Qty 1), 40 (Qty 1), 44 (Qty 1), 52 (Qty 1), 45 (Qty 2), 43 (Qty 3), 37 (Qty 9), 38 (Qty 9)

1шт.

75

PV15V00026R460

REPAIR KIT

Incl 26 (Qty 1), 28 (Qty 1), 27 (Qty 2)

1шт.

76

PV15V00026R470

REPAIR KIT

Incl 48 (Qty 1), 50 (Qty 1), 61 (Qty 1),62 (Qty 1),63 (Qty 1),64 (Qty 1), 27 (Qty 2), 28 (Qty 2), 49 (Qty 2)

1шт.

77

PV15V00026R480

REPAIR KIT

Incl 20

4шт.

Выбрано товаров: 77
