Запчасти Case CX31B (48.100.AD) - SHOE, ASSY - 300MM (48) - TRACKS & TRACK SUSPENSION

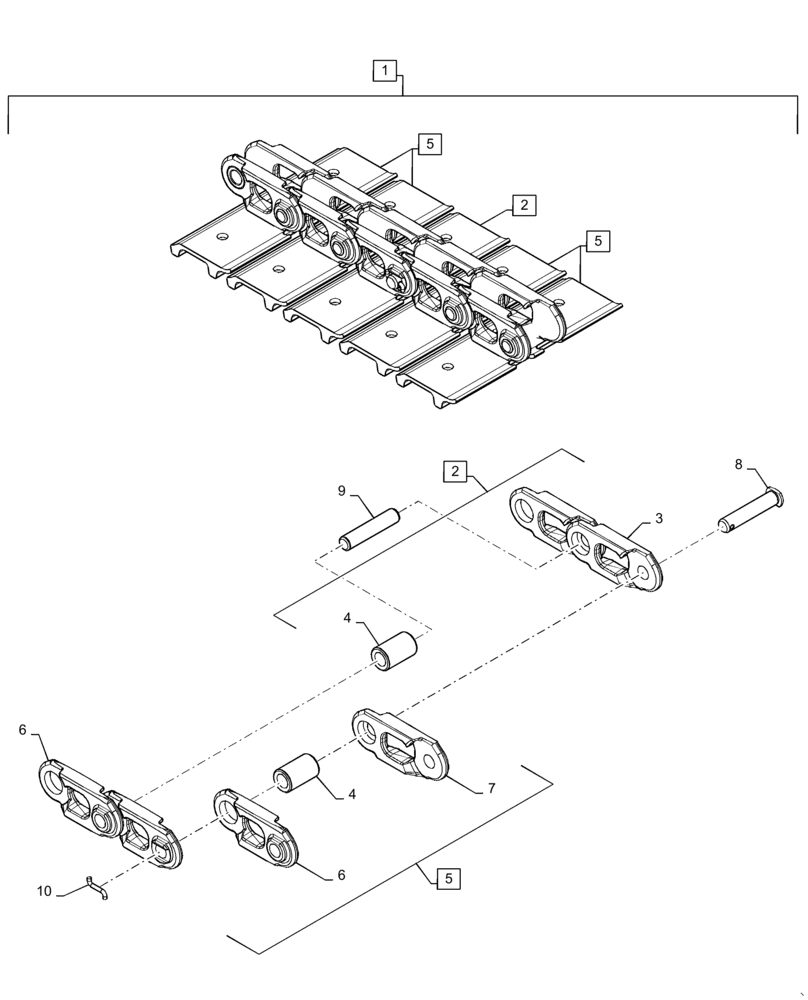

Схема запчастей Case CX31B - (48.100.AD) - SHOE, ASSY - 300MM (48) - TRACKS & TRACK SUSPENSION
4
5
2
5
9
3
6
1
2
7
8
10
4
6
5

Артикул

Название

Примечание

Количество

1

PX60D00012F1

SHOE (ASSY)

(300mm W) Incl 2 - 10

2шт.

2

PX60D00013F1

SHOE (ASSY)

Master, Incl 3, 4

1шт.

3

PM62D01004P1

TRACK LINK

Master

1шт.

4

PM62D01007P1

BUSHING

45шт.

5

PX60D00014F1

TRACK SHOE

Track, Incl 4, 6, 7

44шт.

6

PM62D00002P1

TRACK LINK

Track

1шт.

7

PM62D00003P1

TRACK LINK

Track

1шт.

8

PM62D01006P1

PIN,18.93mm OD x 97.5mm L

Master

1шт.

9

PM62D01005P1

PIN,19.2mm OD x 92.5mm L

Track

44шт.

10

PM62D01008P1

PIN,5mm OD

Master

1шт.

Выбрано товаров: 10
