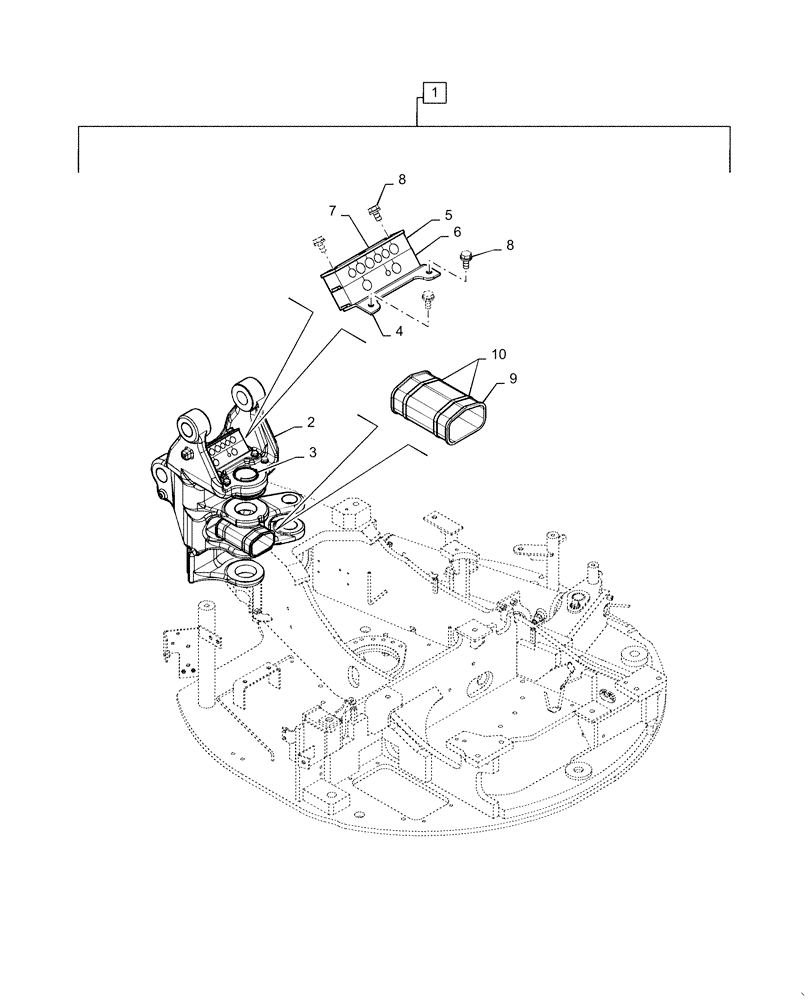

Запчасти Case CX31B (39.100.BD[01]) - BRACKET, GROUP, SWING - NIBBLER & BREAKER (39) - FRAMES AND BALLASTING

1

PX02B00228F1

BRACKET

Group, Swing, Incl 2 - 10

1шт.

2

PX02B00230F1

BRACKET

Assy, Swing, Serial Range: PW16-80001-PW16-80045

1шт.

2

PX02B00272F1

BRACKET

Assy, Swing, Start Serial: PW16-80046

1шт.

3

PX02B01147P1

BUSHING,65mm ID x 75mm OD x 44mm L

1шт.

4

PX02B01389P1

BRACKET

1шт.

5

PX02B01391P1

RUBBER SEAL

1шт.

6

PX02B01398P1

RUBBER SEAL

1шт.

7

PX02B01395P1

PLATE

1шт.

8

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

9

PY02B01299P1

GUIDE

Grommet

1шт.

10

PY01P01043D8

CABLE TIE,102mm L

Clip

2шт.
