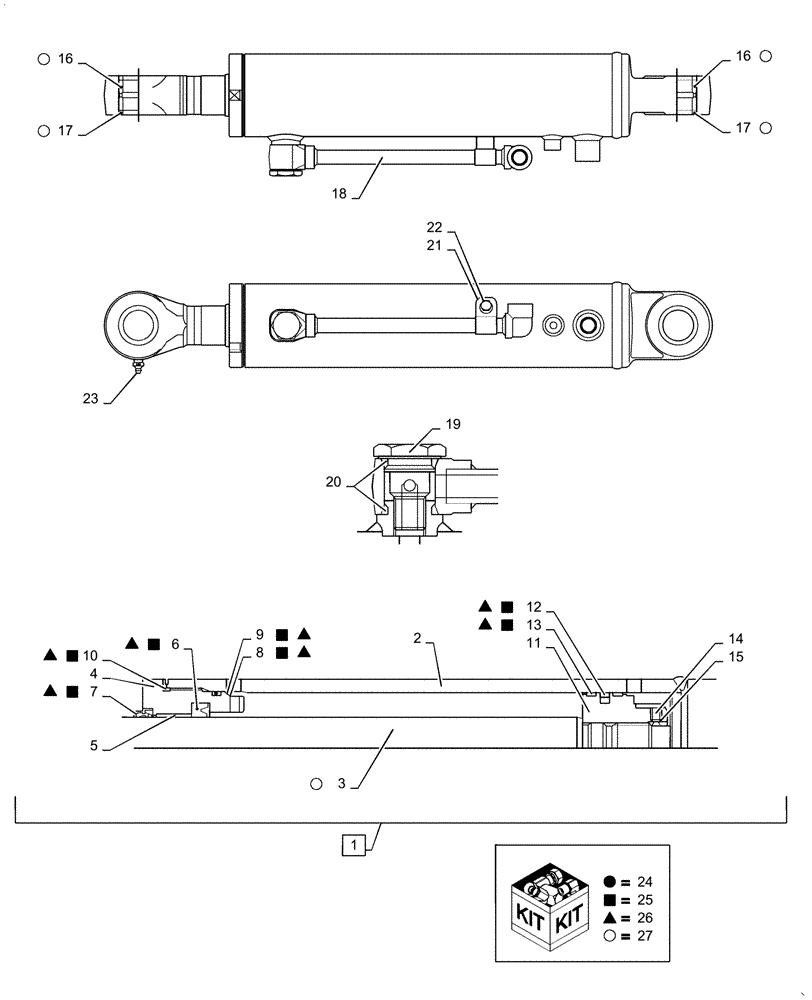

Запчасти Case CX31B (35.741.AC[02]) - CYLINDER, ANGLE, ASSY (35) - HYDRAULIC SYSTEMS

1

PW01V00073F1

HYDRAULIC CYLINDER

Angle, Incl 2 - 23

1шт.

2

PW01V00073S001

TUBE

Assy

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 1, 27

1шт.

4

PW01V00043S003

CYLINDER HEAD

1шт.

5

PW01V00010S004

BUSHING

1шт.

6

2438U635S3

RING

1шт.

7

PH01V00006S006

RING

1шт.

8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

9

PH01V00015S008

BACK-UP RING

1шт.

10

ZD11G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11

PW01V00043S015

PISTON

1шт.

12

2438U852S15

RING

Seal, Piston

1шт.

13

PH01V00015S017

RING

2шт.

14

2438U1057S16

SET SCREW

1шт.

15

2436U946S11

BALL

1шт.

16

PW01V00052S015

BUSHING

2шт.

17

PW01V00012S020

WIPER SEAL

Ring

4шт.

18

PW01V00052S017

TUBE

Assy

1шт.

19

PH01V00017S027

PLUG

1шт.

20

ZD12P02290

O-RING

2шт.

21

PW01V00043S032

CLAMP

1шт.

22

LF01V00002S034

BOLT

Assy

1шт.

23

PR01V00028S025

LUBE NIPPLE

Grease

1шт.

24

YT01V00019R200

REPAIR KIT

Incl 12, 13

1шт.

25

PW01V00073R200

REPAIR KIT

Incl 6 - 10

1шт.

26

PW01V00048R300

REPAIR KIT

Incl 6 - 10, 12, 13

1шт.

27

PW01V00052R200

REPAIR KIT

Incl 3, 16, 17

1шт.
