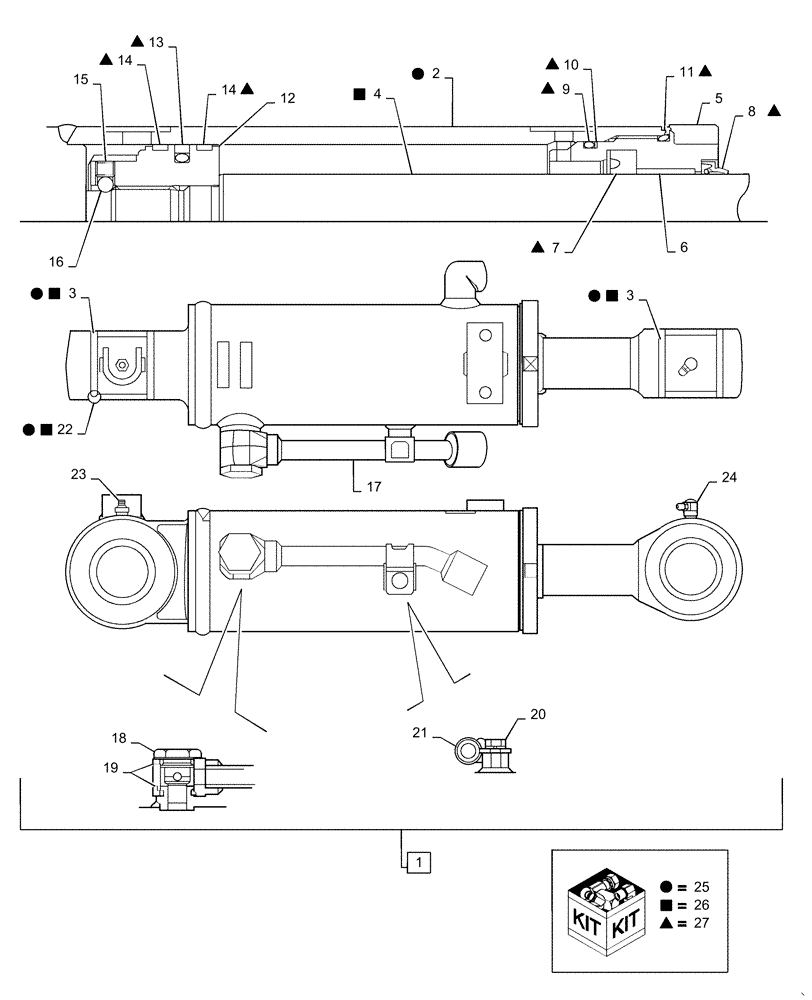

Запчасти Case CX31B (35.741.AA[02]) - CYLINDER, DOZER (35) - HYDRAULIC SYSTEMS

1

PX01V00073F1

HYDRAULIC CYLINDER

Dozer, Incl 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 1, 25

1шт.

3

PX01V00043S002

BUSHING

2шт.

4

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 1, 26

1шт.

5

PX01V00073S004

CYLINDER HEAD

1шт.

6

PV01V00047S019

BUSHING

1шт.

7

2438U635S3

RING

1шт.

8

PH01V00006S006

RING

1шт.

9

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

10

PH01V00014S008

BACK-UP RING

1шт.

11

ZD12G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

12

PX01V00073S011

PISTON

1шт.

13

2438U715S24

RING

Seal

1шт.

14

PY01V00050S018

RING

2шт.

15

2438U1057S16

SET SCREW

1шт.

16

2436U946S11

BALL

1шт.

17

PX01V00073S016

TUBE

Assy

1шт.

18

LV01V00026S017

PLUG

1шт.

19

ZD12P02290

O-RING

2шт.

20

PY01V00052S019

BOLT

1шт.

21

PW01V00043S032

CLAMP

1шт.

22

PR01V00002S027

SEAL

Dust

4шт.

23

PR01V00028S025

LUBE NIPPLE

Grease

1шт.

24

PR01V00029S023

LUBE NIPPLE

Grease

1шт.

25

PX01V00073R100

REPAIR KIT

Incl 2 (Qty 1), 3 (Qty 1), 22 (Qty 2)

1шт.

26

PX01V00073R200

REPAIR KIT

Incl 3 (Qty 1), 4 (Qty 1), 22 (Qty 2)

1шт.

27

PX01V00073R300

REPAIR KIT

Incl 7 - 11 (Qty 1), 13 (Qty 1), 14 (Qty 2)

1шт.
