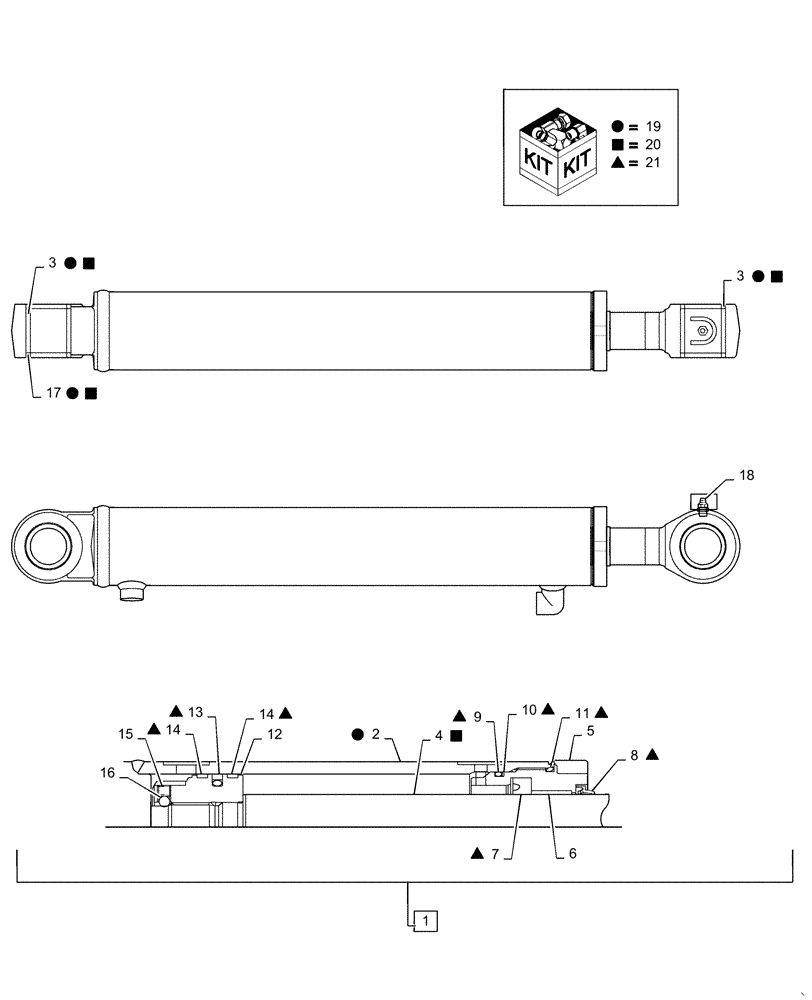

Запчасти Case CX31B (35.739.AA[02]) - CYLINDER, SWING (35) - HYDRAULIC SYSTEMS

1

PX01V00072F1

HYDRAULIC CYLINDER

Swing, Incl 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 1, 19

1шт.

3

PX01V00072S002

BUSHING

2шт.

4

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 1, 20

1шт.

5

PW01V00068S004

CYLINDER END CAP

Head

1шт.

6

PV01V00047S019

BUSHING

1шт.

7

2438U635S3

RING

1шт.

8

PH01V00006S006

RING

1шт.

9

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

10

PH01V00015S008

BACK-UP RING

1шт.

11

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

12

PX01V00070S011

PISTON

1шт.

13

2438U852S15

RING

Seal, Piston

1шт.

14

PW01V00068S018

RING

2шт.

15

2438U1057S16

SET SCREW

1шт.

16

2436U946S11

BALL

1шт.

17

PR01V00002S027

SEAL

Dust

4шт.

18

PR01V00028S025

LUBE NIPPLE

Grease

1шт.

19

PX01V00072R100

REPAIR KIT

Incl 2 (Qty 1), 3 (Qty 1), 17 (Qty 2)

1шт.

20

PX01V00072R200

REPAIR KIT

Incl 3 (Qty 1), 4 (Qty 1), 17 (Qty 2)

1шт.

21

PX01V00042R300

SEAL

Incl 7 - 11 (Qty 1), 13 (Qty 1), 14 (Qty 2)

1шт.
