(35.736.AC[02]) - HYD. LINE, BOOM, NIBBLER & BREAKER (2.36M)

Запчасти Case CX31B (35.736.AC[02]) - HYD. LINE, BOOM, NIBBLER & BREAKER (2.36M) (35) - HYDRAULIC SYSTEMS

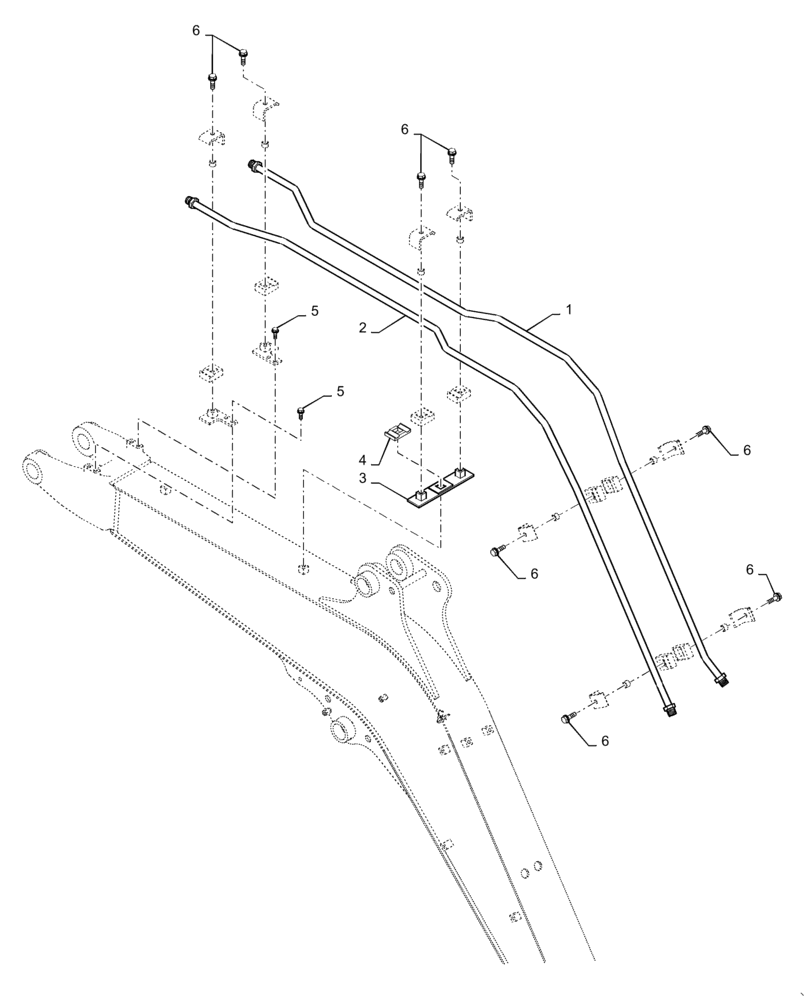

Схема запчастей Case CX31B - (35.736.AC[02]) - HYD. LINE, BOOM, NIBBLER & BREAKER (2.36M) (35) - HYDRAULIC SYSTEMS
6
6
6
2
3
5
6
6
5
6
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW42H01222P1

TUBE

1шт.

2

PW42H01221P1

TUBE

1шт.

3

PW42H01155P1

BRACKET

1шт.

4

PS42H01005P1

CLAMP

1шт.

5

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

4шт.

6

ZM73C10035

BOLT,M10x35mm - Course Thread

Sems

8шт.
