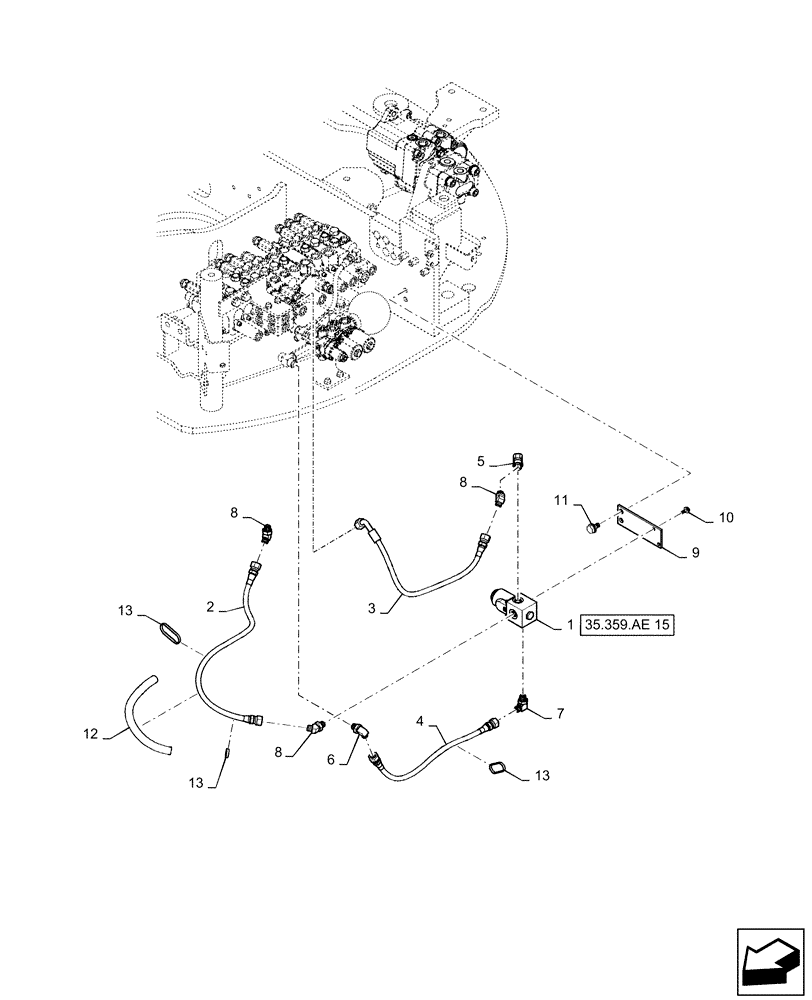

Запчасти Case CX31B (35.359.AE[13]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER, CAB (35) - HYDRAULIC SYSTEMS

1

YJ35V00004F2

SOLENOID VALVE

(Used for Power Shift (Cooler Spec))

1шт.

2

HX24L04070DX

HOSE

Pump Z - S/V A

1шт.

3

HX34L04052DX

FLEXIBLE HOSE

S/V T - Block T

1шт.

4

HX24L04044DX

HOSE

S/V P - S/V P

1шт.

5

2444Z2894

90 ELBOW

1шт.

6

HH35S04004G1

90 ELBOW

1шт.

7

HH35S04004G2

90 ELBOW

1шт.

8

HH45S04004G1

45 ELBOW

3шт.

9

PX64H01037P1

BRACKET

1шт.

10

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

11

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

12

PW21P01003DU

PIPE

Tube

1шт.

13

PY01P01043D3

CABLE TIE,188mm L

Clip

3шт.
