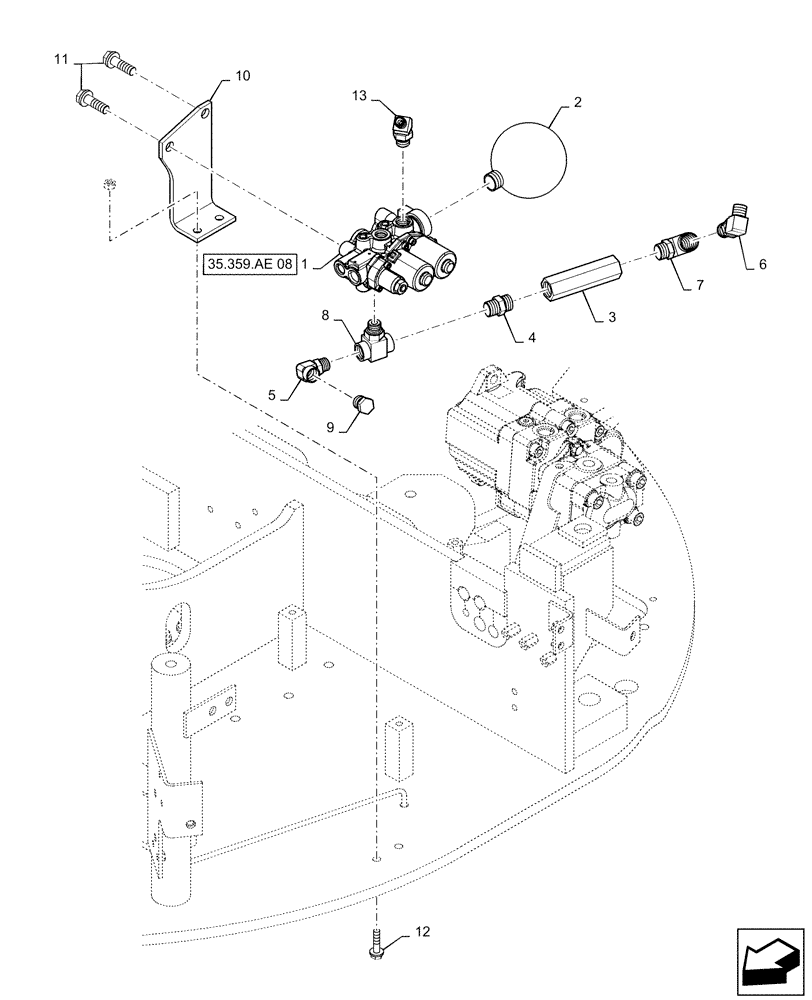

Запчасти Case CX31B (35.359.AE[06]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

1

LE35V00003F1

SOLENOID VALVE

Assy, (Use for Lever Lock, 2-speed Select)

1шт.

2

2445R373F1

ACCUMULATOR

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

4

2444Z3326

HYD CONNECTOR

1шт.

5

2444Z2894

90 ELBOW

1шт.

6

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

7

YT42H01128P1

90 ELBOW

1шт.

8

PW64H01007P1

TEE

1шт.

9

ZE72X04000

PLUG

1шт.

10

PX64H01020P1

BRACKET

1шт.

11

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

12

ZM73C08035

BOLT,M8x35mm - Course Thread

Sems

2шт.

13

HH45S04006G1

45 ELBOW

1шт.
