(35.359.AB[16]) - VALVE, INSTALL - ROTARY / ANGLE DOZER

Запчасти Case CX31B (35.359.AB[16]) - VALVE, INSTALL - ROTARY / ANGLE DOZER (35) - HYDRAULIC SYSTEMS

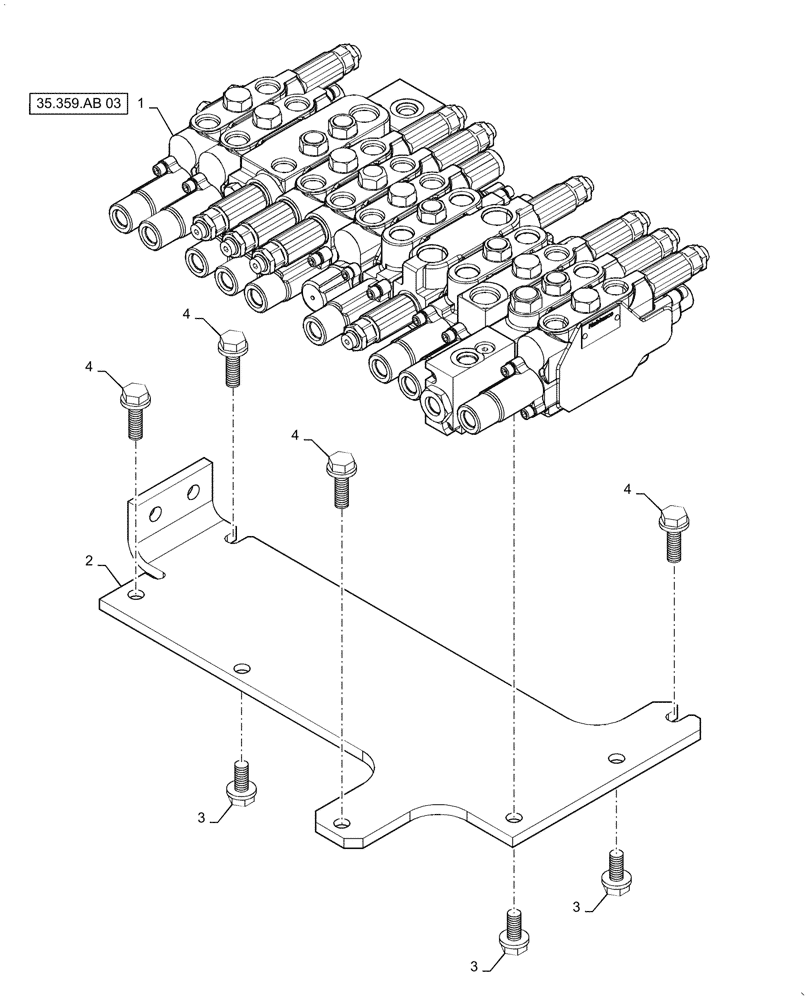

Схема запчастей Case CX31B - (35.359.AB[16]) - VALVE, INSTALL - ROTARY / ANGLE DOZER (35) - HYDRAULIC SYSTEMS
35.359.ab 03
3
2
4
3
4
4
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW30V00051F1

CONTROL VALVE

Assy, Serial Range: PW16-80001-PW16-80070

1шт.

1

PW30V00051F2

CONTROL VALVE

Assy, Serial Range: PW16-80071-PW16-80105

1шт.

1

PW30V00051F3

CONTROL VALVE

Assy, Serial Range: PW16-80106-PW16-80129

1шт.

1

PW30V00051F4

CONTROL VALVE

Assy, Start Serial: PW16-80130

1шт.

2

PX64H01012P1

BRACKET

1шт.

3

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

3шт.

4

ZM73C10035

BOLT,M10x35mm - Course Thread

Sems

4шт.
