/ / / / / / / / (35.359.AB[10]) - VALVE SECTION

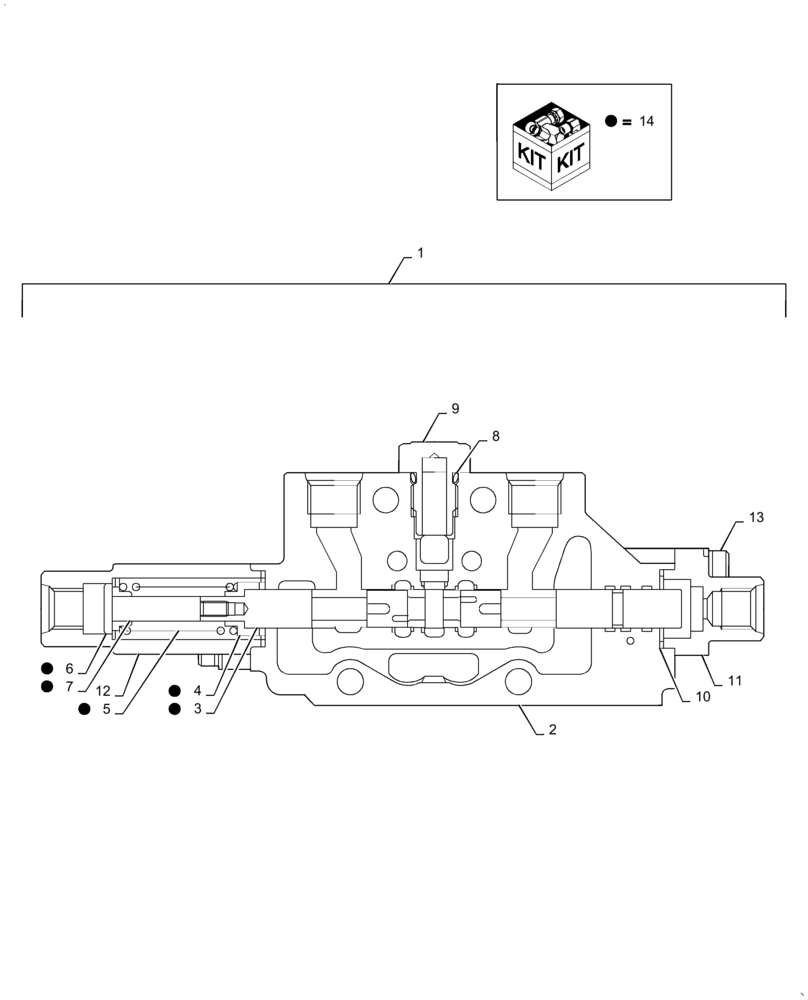

Запчасти Case CX31B (35.359.AB[10]) - VALVE SECTION (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX31B - (35.359.AB[10]) - VALVE SECTION (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5267921.png)
2
14
13
7
10
14
4
3
9
6
5
14
1
12
14
8
14
14
11
14
1
PX30V00090F1
VALVE SECTION
Incl 2 - 13
1шт.
2
NSS
NOT SOLD SEPARAT
Body, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Spool, Incl in 1, 14
1шт.
4
NSS
NOT SOLD SEPARAT
Seat, Incl in 1, 14
1шт.
5
NSS
NOT SOLD SEPARAT
Spring, Incl in 1, 14
1шт.
6
NSS
NOT SOLD SEPARAT
Seat, Incl in 1, 14
1шт.
7
NSS
NOT SOLD SEPARAT
Spool, Incl in 1, 14
1шт.
8
ZD12P01100
O-RING
1шт.
9
PW30V01009S005
PLUG
1шт.
10
PW30V01008S011
O-RING
2шт.
11
PM30V00021S012
COVER
1шт.
12
PM30V00021S013
COVER
1шт.
13
PM30V00021S014
SCREW
Cap
4шт.
14
PX30V00090R100
REPAIR KIT
Incl 3 - 7
1шт.
