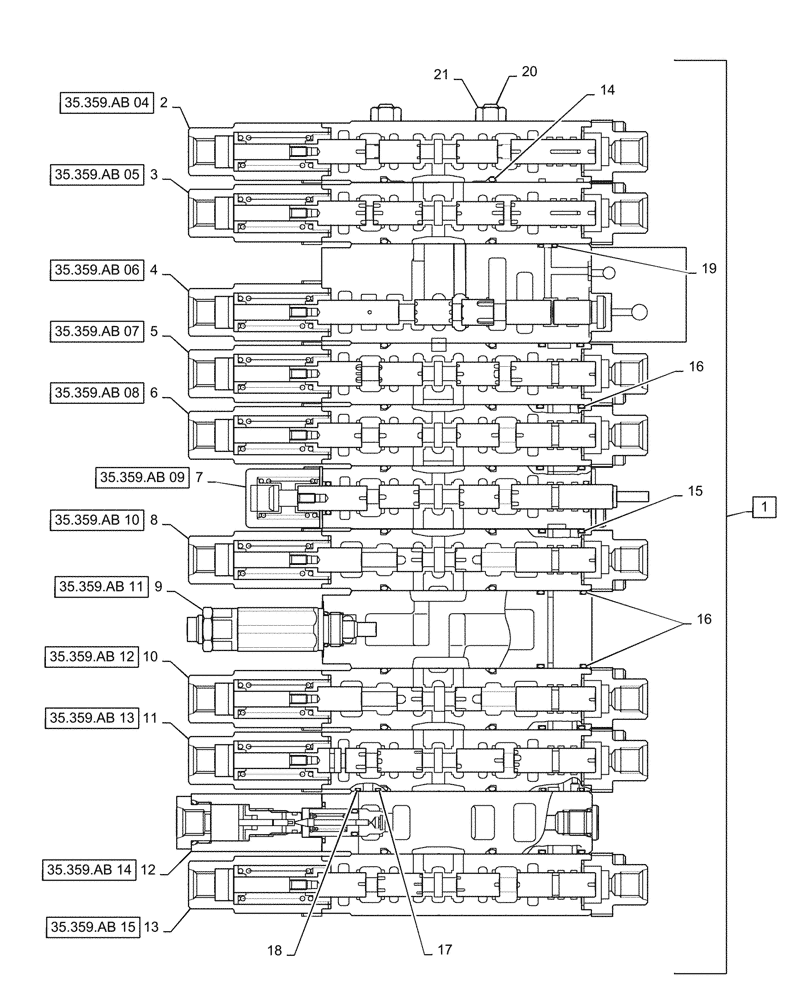

Запчасти Case CX31B (35.359.AB[03]) - VALVE, ASSY, CONTROL, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

1

PW30V00050F1

CONTROL VALVE

Assy, Incl 2 - 21, Serial Range: PW16-80001-PW16-80070

1шт.

1

PW30V00050F2

CONTROL VALVE

, Serial Range: PW16-80071-PW16-80121

1шт.

1

PW30V00050F3

CONTROL VALVE

, Serial Range: PW16-80122-PW16-80139

1шт.

1

PW30V00050F4

CONTROL VALVE

, Start Serial: PW16-80140

1шт.

2

PX30V00084F1

VALVE SECTION

Dozer

1шт.

3

PX30V00085F1

VALVE SECTION

Slewing

1шт.

4

PX30V00086F1

VALVE SECTION

Supply and Travel Independence

1шт.

5

PX30V00087F1

VALVE SECTION

Arm

1шт.

6

PX30V00095F1

VALVE SECTION

Service

1шт.

7

PX30V00089F1

VALVE SECTION

Boom Swing

1шт.

8

PX30V00090F1

VALVE SECTION

Travel

1шт.

9

PX30V00091F1

VALVE SECTION

Supply

1шт.

10

PX30V00092F1

VALVE SECTION

Travel

1шт.

11

PW30V00054F1

VALVE SECTION

Boom

1шт.

12

PM30V00048F1

VALVE SECTION

Control

1шт.

13

PX30V00094F1

VALVE SECTION

Bucket

1шт.

14

PH30V00003S015

O-RING

11шт.

15

ZD11P01800

O-RING

7шт.

16

ZD11P02000

O-RING

3шт.

17

ZD12P01000

O-RING

1шт.

18

ZD12P00900

O-RING

1шт.

19

ZD11P00600

O-RING

1шт.

20

PW30V00017S022

BOLT

4шт.

21

ZN18C08007

NUT

4шт.
