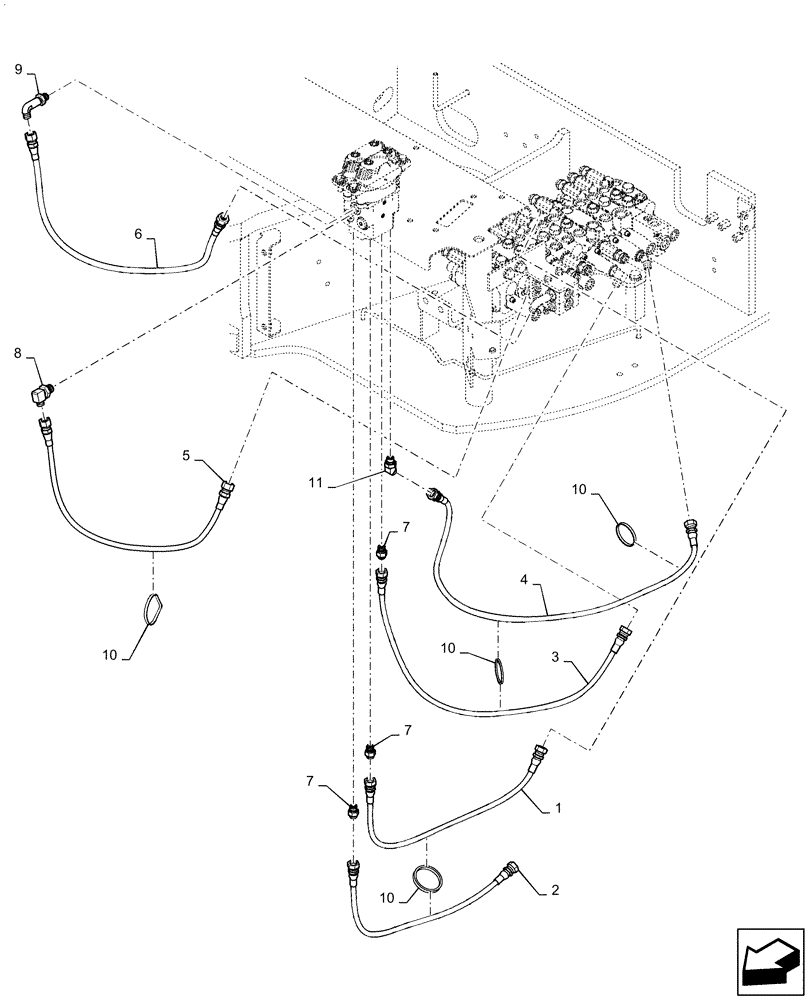

Запчасти Case CX31B (35.357.AO[01]) - CONTROL, LINES, PROPEL, TRAVEL, ALARM (35) - HYDRAULIC SYSTEMS

1

HX23L03052DX

HOSE

P/V 1 - C/V Pb6

1шт.

2

HX23L03060DX

HOSE

P/V 3 - C/V Pb7

1шт.

3

HX23L03076DX

HOSE

P/V 2 - C/V Pa6

1шт.

4

HX23L03088DX

HOSE

P/V 4 - C/V Pa7

1шт.

5

HX24L04060DX

HOSE

P/V P - Block P

1шт.

6

HX24L04066DX

FLEXIBLE HOSE

P/V T - Block T

1шт.

7

HH25S04004G1

HYD CONNECTOR

3шт.

8

HH35S04004G2

90 ELBOW

1шт.

9

PW03H01138P1

90 ELBOW

1шт.

10

PY01P01043D5

CABLE TIE,301mm L

Clip

4шт.

11

HH45S04004G1

45 ELBOW

1шт.
