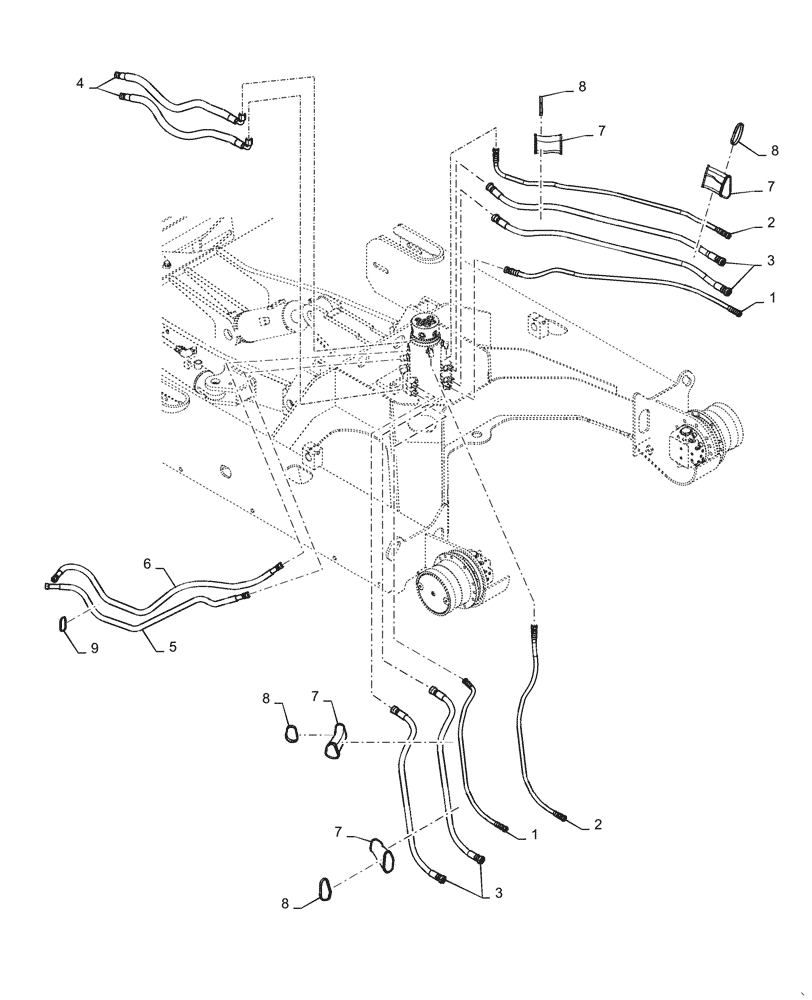

Запчасти Case CX31B (35.353.AE[03]) - HYD. LINE, LOWER, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

1

HX23L04092DX

HOSE

LH Travel Motor D1 - DR, RH Travel Motor D2 - DR

2шт.

2

HX23L04110DX

HOSE,6.3mm ID x 1100mm L

LH Travel Motor P - P, RH Travel Motor P - P

2шт.

3

HX25L08094DY

HOSE

LH Travel Motor: High Fwd A - C, Low Back B - A, RH Travel Motor: High Fwd B - D, Low Back A - B

4шт.

4

PX02H01006D1

HOSE

Dozer E - E, F - F

2шт.

5

PH02H01052D6

HOSE

Angle Dozer H - H

1шт.

6

PH02H01052DG

HOSE

Angle Dozer R - G

1шт.

7

PY02B01168P1

GROMMET

4шт.

8

PY01P01043D8

CABLE TIE,102mm L

Clip

4шт.

9

PY01P01043D5

CABLE TIE,301mm L

Clip

1шт.
