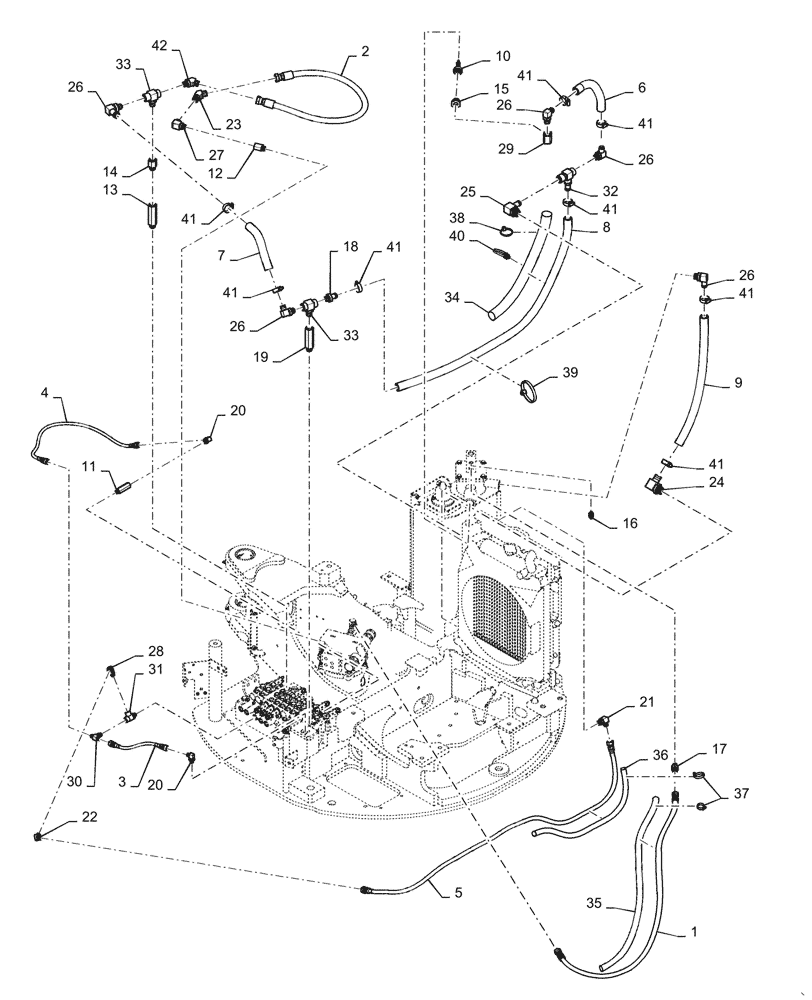

Запчасти Case CX31B (35.310.AG[03]) - HYD. LINE, RETURN, STANDARD &, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

1

HX22L06125DX

HOSE ASSY.

S/M DR - Tank

1шт.

2

HX22L08100DX

HOSE,12.7mm ID x 1000mm L

C/V T1 - S/M T

1шт.

3

HX24L04026DX

HOSE ASSY.

C/V Dr1 - C/V Dr3

1шт.

4

HX24L04088DX

HOSE ASSY.

C/V Dr2 - C/V Dr3

1шт.

5

HX24L06165DX

HOSE

C/V Dr3 - Tank

1шт.

6

PW32H01026D8

HOSE

O/C in - Tank

1шт.

7

PW32H01026DU

HOSE

C/V T1 - C/V T2

1шт.

8

PW32H01026DW

HOSE

C/V T2 - O/C in

1шт.

9

PW32H01026DV

HOSE

O/C out - Tank

1шт.

10

PW21V00003F1

VALVE

Assy, Serial Range: PW16-80001-PW16-80231

1шт.

11

HH25R04004G3

CONNECTION

1шт.

12

HH25R06006G1

HYD CONNECTOR

1шт.

13

HH25R08008G3

COUPLING

Connector

1шт.

14

HH25R08008GB

HYD CONNECTOR

1шт.

15

HH25R16008G1

HYD CONNECTOR

1шт.

16

HH25S04004G1

HYD CONNECTOR

1шт.

17

HH25S06006G1

HYD CONNECTOR

1шт.

18

YJ32H01036P1

HYD CONNECTOR

2шт.

19

2444Z3714

HYD CONNECTOR

1шт.

20

HH35S04004G1

90 ELBOW

2шт.

21

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

22

HH45S06004G1

45 ELBOW

1шт.

23

HH45S08006G1

45 ELBOW

1шт.

24

PX32H01007P1

ELBOW

1шт.

25

YJ32H01031P1

ELBOW

1шт.

26

YJ32H01035P1

90 ELBOW

5шт.

27

YT42H01128P1

90 ELBOW

1шт.

28

2444Z2894

90 ELBOW

1шт.

29

2444Z3715

90 ELBOW

1шт.

30

HH55L04004G2

TEE

1шт.

31

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

32

HH55Q08008G3

TEE,PF 1/2" x PF 1/2", O-Ring

1шт.

33

PY30H01008P1

TEE,PF 1/2" x PF 1/2"

2шт.

34

LQ60C01033D2

CONDUIT,Hydraulic

Tube

1шт.

35

LS21P01001DE

RIGID TUBE

1шт.

36

YX06H01004DE

TUBE

1шт.

37

PY01P01043D3

CABLE TIE,188mm L

Clip

2шт.

38

PY01P01043D5

CABLE TIE,301mm L

Clip, Serial Range: PW16-80001-PW16-80109

3шт.

38

PY01P01043D5

CABLE TIE,301mm L

Clip, Start Serial: PW16-80110

2шт.

39

PY01P01043D8

CABLE TIE,102mm L

Clip

1шт.

40

YN13E01375P1

CLIP,M8 x 8.20mm Shank

, Serial Range: PW16-80001-PW16-80109

2шт.

40

YN13E01375P1

CLIP,M8 x 8.20mm Shank

, Start Serial: PW16-80110

1шт.

41

ZC16X02800

CLIP

8шт.

42

HH45S08008G1

45 ELBOW

1шт.
