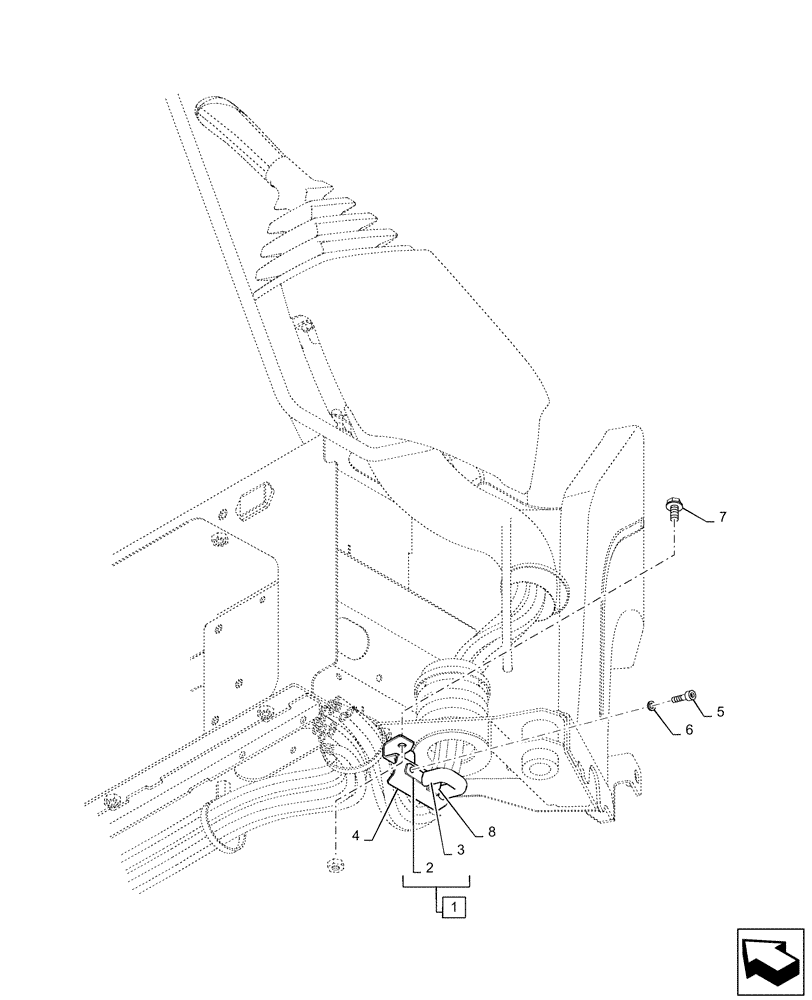

Запчасти Case CX31B (35.204.BJ[05]) - CLAMP, ASSY (35) - HYDRAULIC SYSTEMS

1

YT12P01063F1

CLAMP

Incl 2, 3

1шт.

2

YT12P01064P1

PLATE

1шт.

3

YT12P01065P1

RUBBER PAD

1шт.

4

PX12P01061P1

BRACKET

1шт.

5

ZS28C06020

SCREW,Hex Socket Head, M6 x 20mm

Cap

1шт.

6

ZW26K06000

LOCK WASHER

1шт.

7

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

1шт.

8

PS12P01085P1

RUBBER STRIP

1шт.
