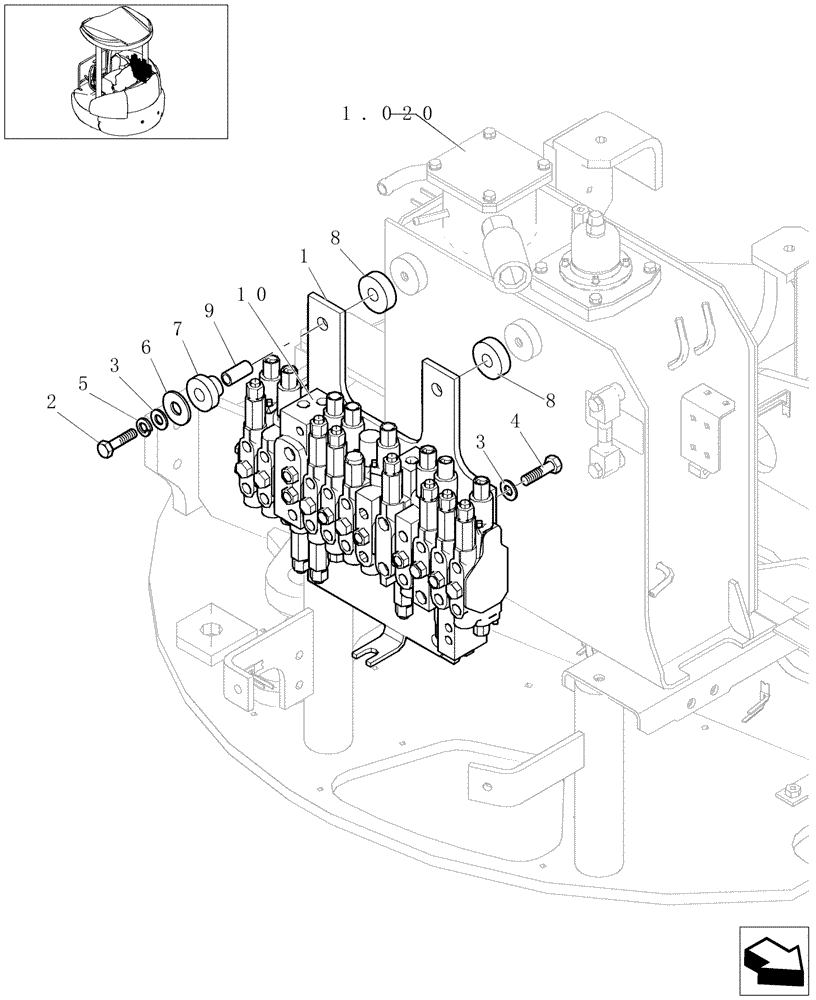

Запчасти Case CX31B (1.050[01]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

87538898

BRACKET

1шт.

2

11107234

BOLT,Hex, M10 x 50mm, Cl 10.9

4шт.

3

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

7шт.

4

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

3шт.

5

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

6

72950364

WASHER

4шт.

7

87538902

SPACER

4шт.

8

87538900

SPACER

4шт.

9

87538901

SPACER,12mm ID x 18mm OD x 26.5mm L

4шт.

10

87704800

DISTRIBUTOR

1шт.

See Page 1.050A

1шт.
