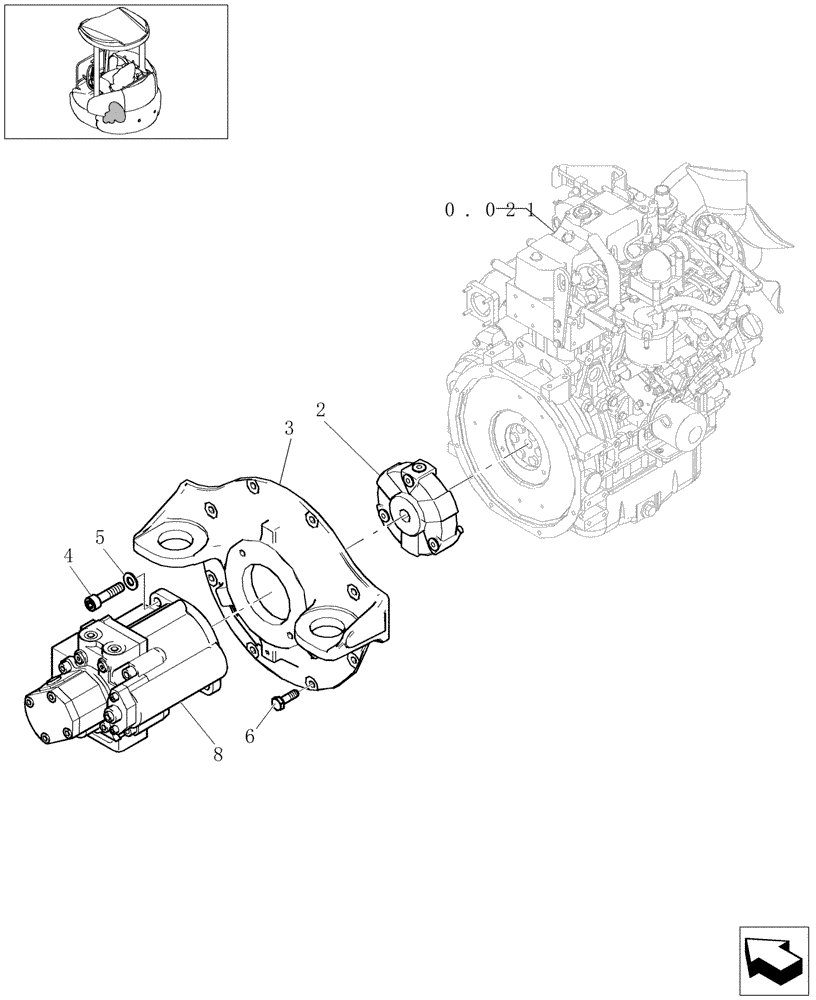

Запчасти Case CX31B (1.030[01]) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS

2

87388997

FLEXIBLE COUPLING

1шт.

3

72286372

BRACKET

1шт.

4

14309534

SCREW,M12 x 1.5 x 30mm, Cl 10.9

TCE M12x30

2шт.

5

13507521

WASHER,12.2mm ID x 21mm OD x 2.5mm Thk

Ø12

2шт.

6

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

8шт.

8

72282097

PUMP

1шт.

See Page 1.030A

1шт.
