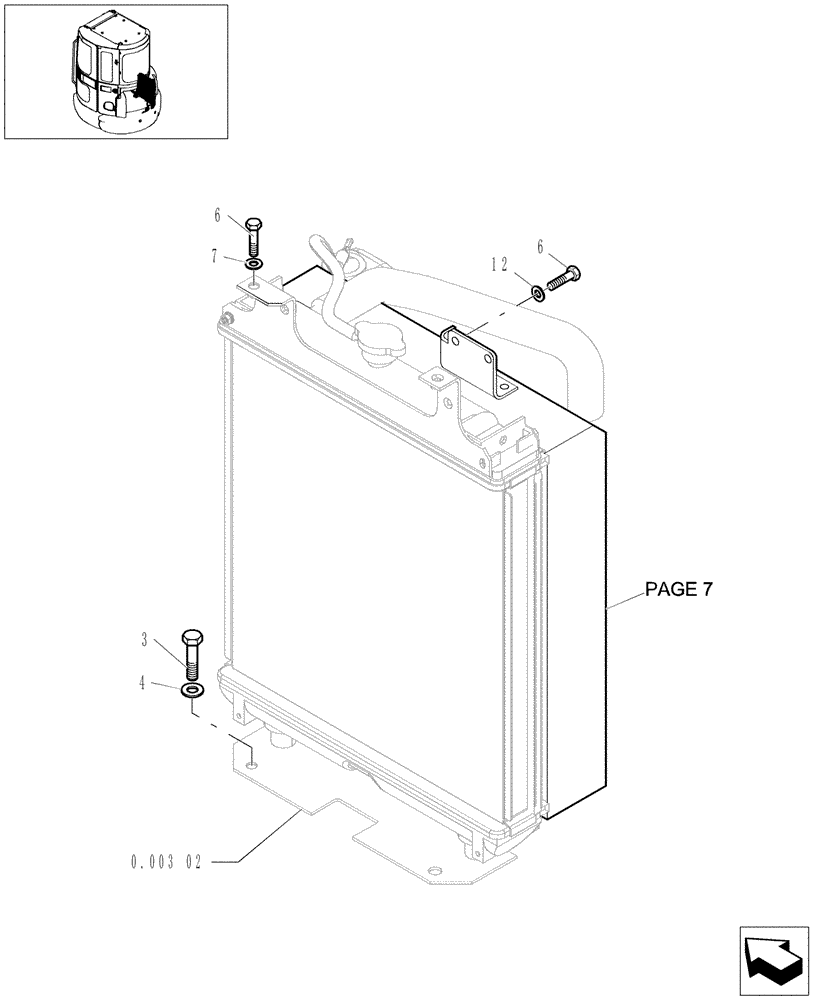

Запчасти Case CX31B (5.0604[06]) - RADIATOR - INSTAL (HEATER&COOLER, CAB) - 747939020 (10) - ENGINE

3

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

4

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

2шт.

6

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

8шт.

12

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.
